LAN Modules

A multiplicity of these modules may be attached to the main unit. Distance from main unit is up to 2 km. Optical isolation links are available for applications requiring lightening protection. There are two principal types of LAN module:

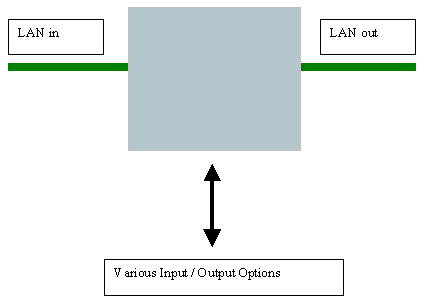

MicroSlave Unit

It is a simple low cost module without read-out.

I/O configurations include:

• 4 Channel Analogue to Digital.
• 4 Relays On / Off.
• 2 Channel 32-bit Counters.
• Digital Potentiometer.
• Temperature Sensors.
• Gas Sensors.
• Voltage & Current.

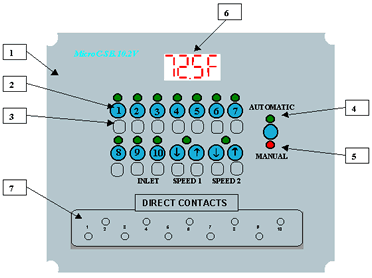

LargeSlave Unit

It is a larger unit with read-out and local manual control.

Features / Equipment List:

1. Overlay waterproof keypad.
2. Domed push button switch.
3. ID Label position.
4. Green status LED.
5. Red status LED.
6. 4 x 7 segment + decimal point LED readout.
7. Optional Manual Over-ride switches (Parallel with relay contacts).
