EchoProducer

Version 3.7.5

Check Regular for updates
Page Updated on  11/06/2013
  Echo-Producer Yahoo group at http://groups.yahoo.com/group/Echo-Producer

Windows XP & TTS speech  Application   No registration need FREE to use

EchoProducer is a simple to use Windows XP utility that uses the Text to Speech engine that comes with Windows. Ideal for Sysop/Owner of a Repeater / Link or Conference Controllers. There are many tools in this program that will assist you.. Courtesy tones using CW or Audio file ID's with effects (Door bell sounds). Weather conditions Current, Forecasts and Warnings. Auto connect options. Text Box Greetings for connecting stations. DTMF audio player can be used for Help or Information audio files. Graphical Text Chat box. Up to 20 random Beacons using TTS. News Player, Download and play the news to your RF users all automatically. Sysop / Admin Conference Controller option. DTMF single or group connect / disconnect. Times Connect and disconnect station in the conference Timed silence mode option.  Plus much more. This program runs along side the EchoLink program.

A BIG Thank You to Jonathan K1RFD for providing EchoLink. Without it this program EchoProducer would not have been possible. The EchoLink program is provided FREE as is the EchoProducer add-on.

Please visit our sponsor

Welcome to Echo-Producer

History & Download

PDF Help Manuals for some EchoAddons available from Dave G3VFP website Click Here

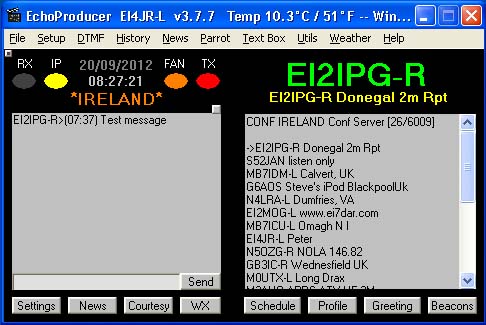

Main Menu

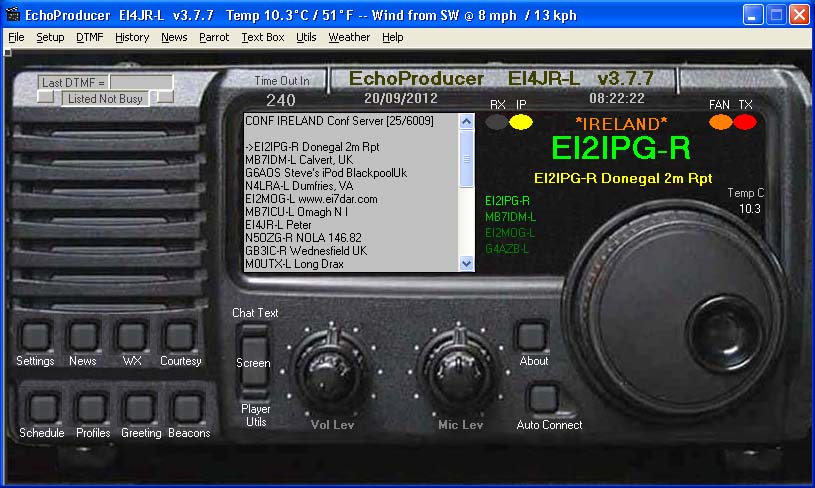

Normal Sysop Mode

The small button at the top left of the windows will make the text larger / smaller whish will make the text a little easier for the poor sited. The button to the right of the station list will reveal a larger station floating list. The buttons either side of the Listed not Busy window will enable and disable the "Listed Busy" and "Listening Only"

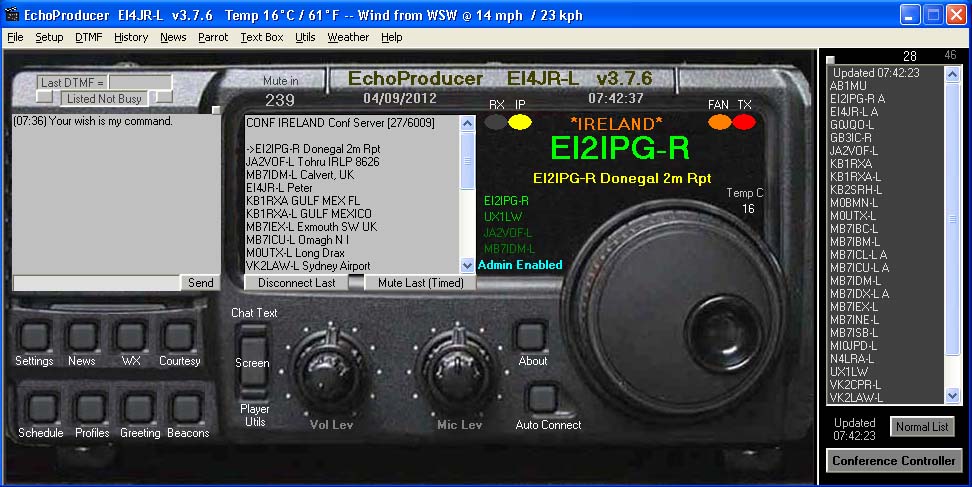

Conference Sysop Mode

These are the main screen and will give you the option to go to various parts of the program. Normal users and Conference Admin will see slightly different screen as shown in the top picture. Conference Admin will see some extra buttons and functions as shown in the above screen to control there nodes and conferences. The time out counter is Only an indicator for you and does nothing else. The amount of minutes to be changed to meet your needs. All important information is displayed on the easy to see screen with the option to display and alter some of the parameters using the setup button.  The small button at the top left of the window will make the text larger / smaller whish will make the text a little easier for the poor sited. The buttons either side of the Listed not Busy window will enable and disable the "Listed Busy" and "Listening Only"

==============================

About / Updates Auto Connects - Backup .ini files - Courtesy Tones - Connect and RF History  - Conference Controller  -  Conference Filter - Day & Time BeaconsDTMF / Connect Control  -  DTMF / Text Player - Greetings - Idents / Settings - Language TTS Text - Message for Sysops Attention   - News / WX  Player  -  Parrot Record / Playback  - Player Utils - Re Start / Close Down - Serial Player - Text Beacons - Textbox Audio Requests - Text Box Chat - Text Box Node Controller - Text Box Messages - Text To Wav Converter - Warning Text Messages Setup - Weather -   FAQ

EchoProducer is a Windows  Application   No registration need for these program. Free to use

TTS Voice is required

You may find one of the FREE voices here you can use http://www.bytecool.com/voices.htm

Check regularly as I will update as soon as I have made amendments or additions from users

Initial Setup
You must have EchoLink installed and running before installing EchoProducer
 Download the EchoProducer.zip software into a directory unzip the software (4 files) and Run Setup
You MUST Install the program into its default directory
C:\Program Files\EchoProducer\
C:\Program Files\EchoProducer\ is where the program places its files. You must let the program install it in the default directory.
Updates to the program can be checked and checked from the program and updated. See below for update information.
NOTE if you are using a 64 bit version of windows do NOT allow the program to install in the C:\Program Files (x86) EchoProducer\

What computer do I need and how fast must it be
EchoProduce runs under the Windows XP platform. Due to the size that the program has grown I would suggest that the computer speed needed would be over1 gig speed and as much memory as you can. 500 meg and above. The rule of thumb her is the fastest computer with the most memory as possible.

Where can I get voices from?
I used NeoSpeech voices from http://www.nextup.com. I found Kate16 to be the best.
Check in your Control Panel for the speech Icon and that your Text to Speech is working first before running EchoProducer. I have not tried it on any of the other windows. If you have and it works let me know. Check out the Microsoft web site Microsoft Speech SDK 5.1 for more information.

How do I install the voice
The program uses the XP speech engine and this must be working before the EchoProducer program is run.
Setting up your voice is not hard. Once you have installed your voice using the instructions provided with your voice simply go to the control panel and select the speech icon as this is where you will select the voice that you have installed. this is done by going to Start – Settings - Control Panel – Speech - Voice selection - select your voice you installed. (If you can see your voice you haven’t installed it.)
You can test the voice here and when you are happy with your selection click OK. Your voice should work with any of your programs that use the speech engine like EchoProducer.

Turn Off the normal EchoLink voice
To stop the EchoLink voices and have EchoProducer voice only on the EchoLink program go to
TOOLS - SYSOP SETTINGS - IDENT and blank out the callsigns and all remaining tick boxes must be empty. Tick the Use external file box.
TOOLS - SYSOP SETTINGS - OPTIONS Set Announce Connects to None. Set Announce Disconnects to None. Set Announcement Muting to Suppress all
The only EchoLink voice that we are unable to disable is the "Connecting to Call" when DTMF is used

24 hour PC Clock
Make sure your Windows clock is on 24 hour time. To do this, go to the Windows control panel, make sure it is in "Classic View" and choose "Region and Language Options." Then, click Customize. Choose the tab labelled "Time." Under the Time Format pull-down menu, choose "HH:mm:ss." Click OK, Then OK again, and Windows should now be showing the time in 24 hour format.
Main Screen Colour and LED's
Every body has there own idea on the colours that they want there EchoProducer to be so the option to change the colour of the main screen only to your preference also the LED indicators can be changed. This can be accessible from the setup menu or the small buttons wither side of the station talking area.
***  Compute Alerts  ***
Your computer alert setting MUST be turned OFF when using EchoLink as the noise made can be transmitted through the system especially when using VOX.
To Stop / Disable them Click on START - SETTINGS - CONTROL PANEL - Sound and audio devices - Sounds - Scroll down to Windows Explorer  and change the Start Navigation to None and click OK
Some conferences will Mute you if these Computer noises are heard. This will happen on the *IRELAND* conference so be warned.

Cool It
Also be mindful of your transmitter when transmitting large files you could damage your radio if you are running high power and don’t have sufficient cooling. You are responsible for your equipment so check with the equipment manufacturer if you are unsure.

One more important note
We are sorry to report that this program is not compatible with EchoTime, so please deactivate EchoTime before attempting to use this software or if you do wish to use the  EchoTime program deactivate EchoProducer as you cant run both at the same time.

Frequently Asked Questions
If you have a problem when running the program check out the FAQ section at the bottom of the page first as you may get your answer to your problem there.

==============================================================

Icon in the system tray
When the Icon is in the Tool tray simply double click on the Icon to show the program

============================================

Pull Down Menu and Button Settings

Pull Down Menu

Setup Buttons

To navigate around the program to the various sections the use of the Pull Down Menus or the Setup Buttons can be used

Main Screen Colour Changer

The main screen only colours can be changed to your preference or re set back to the default colours. This is accessible from the main top menu under the Setup - Colours. There is also a small button to the top right of the orange Parrot LED.

LEDs

The LED style of indicators can be changed if required by clicking the small button located to the top left of the PTT Red LED

Idents / Settings

Announce Options
Preamble  when ticked will greet your users with Good Morning - Good Afternoon or Good Evening before the time is sent out.
Station Con/Dis when selected the nodes that connect or disconnect will be announced
If the Add the time is clicked the time will added with the announcement.
If the Add Date to Time is ticked then the local date will be transmitted along with the time.. If you use this option make sure that if you are using the beacon option as well that you set the beacon delay to about 15 seconds otherwise the beacon will not be heard
Text messages when ticked will transmit what has been sent using TTS. This can be enabled or disabled using DTMF. Filtered messages (Conference Controller Text Box) will not be transmitted.
The text messages can be turned on / off using DTMF

Beacons
In the Beacon setup section information is entered to be broadcast simply click on On The Hour, Quarter or Half for broadcast. The Plus seconds input allows you to have the beacon information sent after a pre set time in seconds after the time. This enables any announcements to finis before your beacon is transmitted. If the add Date to the time option is ticked as well that you set the beacon delay to about 15 seconds otherwise the beacon will not be heard
There is an extra beacon that can be also programmed to send a beacon at a pre set time. This time is set in minutes.
 Beacons Set 1 & set 2 can be set up as a static beacon or random. See Beacon setup. The beacon setup can be swapped by using the DTMF.

Beacon Connect Stations
Beacon connect station enable your node to transmit at the set minutes the list of station that are connected to your node.

DTMF Connected Stations
Connected stations will be transmitted when the DTMF code is received by your RF user. Option for last station who had connected and may have left. The time the node disconnected will be transmitted

DTMF Announcements
This option gives you the option to set the announcements / beacons OFF / ON using DTMF. Enter the DTMF code that you wish to use in the appropriate boxes.



Idents
Voice ident Call sign, Will read your call sign in TTS voice, you can enter you callsign with spaces of if needed spell it out to make it sound nice (Example Vee Kay two E Ex) the TTS engine will say anything you put in this box (Keep it short)  In the box “ID Every” put in the time interval you would like your call sign to be announced and tick the box to use.
  In the box “Turn ID Off After” enter a time in minuets and tick the box to use if desired. This feature allows the Ident to stay in quiet mode, (Not identifying) if the frequency is not in use for extended times. This option is mainly used in VK Land (Australia)  Whenever a signal is received by EchoLink this timer will be reset. Say call now button, Click this button to test what it sounds like.
 PTT call now Button, Click on this and the PTT on the Transceiver will be activated and the call will be transmitted over the air.

     TTS & TTW volume and speed
You can adjust the TTS (Text to Speech) and TTW (Text to Wav) with these control sliders. Clicking the TTS or TTW button will test your settings.
Station Connect Bell
This option enables you to have an extra warning file played that indicates that you have a station connect to your node.

Delay Before TTS
This option will put a delay before the TTS voice for the specified delay increment. This is to allow for some transmitters that have a delay before TX



Voices Available
This option will enable you to select main voice the you wish to use if you have more than one voice installed.
When using the voice selection within the text boxes that you wish to use simply add the identifier (0) or (1) etc for the voice that you want to ise so for example if you want to change the voice for a particular message you would start the text box message with the identifier. example "(1) your text" this would say the words "your text" using voice (1)
Path to program directory
The path to where the EchoProducer program is installed is highlighted in the text box. there is also 2 buttons that will set the default to normal 32 bit or 64 bit directories. If clicked they will also change the News file locations. You will have a warning if this is about to happen in used.
Language TTS
This will take you to a screen that enable you to change any of the embedded text. This will allow other languages to be used

Silence Announcements and Player

This option enables you to silence all the TTS announcements and player functions. Your node will operate normally without TTS announcements, CW and Player functions when silenced.

Announce Silence Scheduler 1,2,3
Their are 3 Silence Schedulers that can be used. Simply tick the days and enter your OFF time you want your node silenced and the ON times you want your node back to normal. A delay of 15 seconds has been added to the Announce times as this will allow the any time or other beacons to sound off before being silenced. These normally happen on the hour, quarter and half the hour. Tip if you don't want these announcements / beacons to go out then set your off time 1 minute before they are due.
Announcements
Disable Announcements when ticked will disable all announcements and CW idents. Warn About Silence Mode when ticked will give a Text message saying if the Announcements are Enabled / Disabled also a TTS message saying that the Announcements have been Enabled. There is no TTS when the Announcements have been disabled. (Well you did disable them didn't you ) although if you tick Allow CW idents Only During Disable will ident if ticked in the Idents section.
DTMF Announcements / Enable
This option will enable / disable the announcements when the selected DTMF is received
Save  Changes
Click this button to save any changes that you may have made.

      DTR / TRS Control  (Fan)
DTR or RTS for possible fan switching is highlighted when that selection has been make for the PTT. An option is available to let the fan run on if selected for an added amount of time that is selected by you
With a little circuit and you can wire at cooling fan to your transmitter, the fan will run for however many minuets you enter after the transmitter has un-keyed.
The Use Start Delay when ticked will will only start the fan after the allotted delay time of incoming traffic from the internet. The stops the unnecessary use of the fan.
There are some simple Circuits that can be found on www.echoireland.com that can be used for this purpose. The Alternate DTR / RTS option is disabled when this option is in operation.

Alternate DTR / RTS Control

This option when Use Alternate CTRL is selected enables the RTS or DTR via DTMF active until the allotted time set by you has elapse. to start it again simply enter the On DTMF. You can add your On / Off message that can be added by ticking the Use Message option. The Fan Control option is disabled when this option is in operation.

We have used this option to switch the repeater from analogue to D Star.

Permanent On Option

This option when used will enables the RTS or DTR via DTMF and stay active until the same CTCSS tone is sent again. Your pre set audio message will be transmitted when enabled / Disabled

Duplex Repeater

This option when used will enables the RTS or DTR to be active when you receive a radio signal. This can be used to key up a possible repeater transmitter

PTT Select

This option will enable the RTS or DTR to be active when there is an IP signal. This can be used to key up your transmitter when information is sent to you via the Internet

Back To Top

============================================

Auto Connects

Auto Connects
 There are 10 auto connect options here, just enter a callsign of a station you want to connect to and tick the box, your system will then connect to this call and remain connected permanently,  the system will automatically reconnect to this station if disconnected. This can take up to 35 seconds to re connect you.
You can set a DTMF sequence to enable and disable Auto Connects 1 & 2 remotely.
Connect Between selected Hours
This option when the stay connected to is ticked will enable the entered node to stay connected between the hours of your selected time. The Re Connect time can be set for the re connection. This is set in minutes If RF Busy Don't Disconnect is ticked will re set the timer to the entered number of minutes when connected to another node. If there is inactivity while connected to some other node other than the one you entered and the timer counts down to 0 (zero) the connected nodes will be disconnected if ticked and the Node entered will be re connected. DTMF can be used to toggle this option on or off.

Auto Connect with adjustable minutes
This option when the stay connected to is ticked will enable the entered node to stay connected.  The Re Connect time can be set for the re connection. This is set in minutes If RF Busy Don't Disconnect is ticked will re set the timer to the entered number of minutes when connected to another node. If there is inactivity while connected to some other node other than the one you entered and the timer counts down to 0 (zero) the Node entered will be re connected. DTMF can be used to toggle this option on or off.

List as Busy
This option when the Use box is ticked will keep your node Listed As Busy between the selected hours. DTMF can be used to toggle this option on or off.

Listen Only
This option when the Use box is ticked will keep your node in Listen Only between the selected hours. DTMF can be used to toggle this option on or off.

DTMF / Connect Control and Net Scheduler Set 2 buttons are other options that have other auto connect options

Back To Top

============================================

Connect & RF History

The connect & RF history can be recorded if required by simply selecting the appropriate tick box. Station Connects, RF End, RF Start, DTMF Used

Record RX RF to wav
When selected this will record all of your RF uses QSO and save them in wav format. To play back the recorded wav file click on the Plat wav Files Button. Please note that this will ONLY record if you are connected to another node.

Play History wav Files

This is a simple wav player that will enable you to play back your wav files.

File select
Click on the Open button and change the path to your recorded wav files. The files are held in the EchoLink default directory "My Documents / EchoLink / wav". if the play On Open box is ticked the selected file will play. A explorer button is provided to open the computers explorer and will enable you to brows your files and also delete. You could always use the computer media player from this screen if so required.

============================================

Beacons


Beacons Set 1 & Set 2
Up to 20 beacons per set can be programmed. Simply enter the text for your users to hear. the use of ("." Period) or ("," Comma) or (":" Colon) or (";" Semi Colon) will add delays to your messages also that way you spell the words as you can manipulate the way things sound when transmitted. See above to give you a basic idea how I have done mine.
Also in the fields you have the option to have your beacons saved as a .txt .wav or .mp3 that you may have on your hard drive. This gives you a great flexibility in the way you have your beacons played. You can have your audio files pre done and use them as your beacons. The input field is intelligent enough to know what mode to use  to say or play your beacon.
Serial
When ticked the the messages will be transmitted sequentially (One after the other). You can select the start number and the To number. Use the Step Next button to step to where you want to start your beacons from. Some of your changes will require you to click on the Re Set button.

Random Beacon
Then ticked the messages will be randomly selected from 1 to the number that you enter.
Static
When ticked the selected message will be the only message that will be transmitted

WX Temperature
When ticked the Weather temperature will be transmitted with the associated text that was selected in the weather section

Extra Beacon
There may be a time that you need a beacon played at a more regular time along side you normal beacons (Possible Local rally announcements) and this option when ticked and time in minutes entered will do this. Again enter the beacon text. You can enter the amount of minutes that you want before the beacon starts its normal countdown. The Use Above Beacon setup option when ticked will utilize the settings that you have for the normal beacons and transmit them at your extra beacon set time.
Allow Timed Beacon set 2 also to be enabled when set 1 is in operation
These beacons are selected for use by the "Idents / Settings --> Idents " from the main menu and selecting Set 1 or 2.  When this option is ticked the it will also use the extra beacon in set 2 at the same time as beacon set 1 is in operation. If either one of the beacons are playing it will stop the trailing beacon as it will not play both at the same time
Voices Available
When using the voice selection within the text boxes that you wish to use simply add the identifier (0) or (1) etc for the voice that you want to ise so for example if you want to change the voice for a particular message you would start the text box message with the identifier. example "(1) your text" this would say the words "your text" using voice (1)



Back To Top

============================================

Echo Chat

EchoChat

This option uses the EchoLink text box facility but in a more fun graphical way. Messages can be sent to other nodes that are connected to you or the conference you are connected to. Simply enter your message to send and either press the entre key or click on the send button.

The small button at the top left of the Chat window will make the text larger / smaller

Hide Extra Button
The Hide Extra button will reveal or hide some extra tools that you can use in your chat box.
Text Filter
Entre a words into one of the filter boxes that would be in a sentence that would appear in your text box. If the word is detected then the complete sentence is not displayed  in the text box. This option is not case sensitive
Case Sensitive
This option when ticked will make the filter word case sensitive. When not ticked all filter words  upper or lower case messages will filtered

Extra Message Call
This option enables you to add a 2nd callsign that can be used for messages, This is useful as senders of messages forget to add the -L or -R to some of the callsigns so having an alternate call helps stop this problem. Sometime your call is different to your node callsign so this option enables you to put your own call as the extra message callsign.

Smiley's
Here you can add smiley's to your text. Only stations that are running the EchoChat text box will see the smiley pictures. To select a smiley simply hover over the picture that you wish to add to your text message and either click on the picture or wait for the tool tip as it will show the key press that you would need to enter.
Some other smiley's that are not shown are :loo - :beer - :skull - :xmas - :monk - :PeterEI4JR

Time stamp
You can select to time stamp messages that are received or transmitted
Large / Small text

The small button at the top left of the Chat window will make the text larger / smaller whish will make the text a little easier for the poor sited


Text Box messages
This option is shown below

Private Message
This section is a text only option where you can send a messages to a node that is connected directly or a conference that you are connected to. Simply enter the callsign and any extensions like -L or -R, Type your message and click on send when finished. If the station receives your message you will get and acknowledgment message back saying Message Received. If the station is on line and connected to the system that you are connected to then they will get the message. If you get no acknowledgment then they will not have had the message put in there Private Message box. The private message box will automatically open if you receive a message
Show Chat Box When Message Received
Clicking this option will make the Text Chat Box pop up to be seen when hidden if a text is received in the text box.
Send a Red Box Message to sysop
Clicking this option will send messages to the sysop of a node into his high alert Red Message Box

Back To Top

============================================

Parrot - Record / Playback

Parrot - Record / Playback

This function when enabled via DTMF is to turn your simplex node into a simple Parrot Repeater enabling your RF user to transmit into the link and when de keys will hear what he sounds like due to the replay. The main Menu Consol will indicate when the parrot mode is enabled also during the playback

DTMF
When the correct DTMF is sent by the RF user will Enable or Disable the parrot function

Parrot Disable Time
The Disable time can be set to revert the node back to normal use if not used

Show Busy
This option when ticked will show your link as busy when the parrot is enabled and will resume back to Not Busy when the Parrot is disabled.

Disconnect All
When ticked and the Parrot function is enabled all stations connected to your node will be disconnected

CW Ident
When ticked the RF user will hear the end of over RF CW ID set in the Courtesy ID section. Not used in Windows 7 mode.

What if User Times Out
Here you can set the penalty if the use times out while using the parrot. (1) Not play the message or (2) Only play up to the time out period

Announce Start
Set the message that the RF user will hear when they have successfully enabled the Parrot

Announce end
Set message that the RF user will hear when the Parrot session has ended.

Time out warning
Set message that the RF user will hear if he has timed out and the "Send Time Out Warning and Message Deleted" is ticked.

Stop Playback TX
This button when clicked while a message is being played back will immediately stop and delete the replay

Save
Save any of your changed fields in this part of the program

Back To Top

============================================

Text to Wav Converter

Text to Wav Converter
Simply type your text into the text box and press the Speak button and if you like what you hear simply tick the save to .wav box and click the speak button. You are then given the opportunity to select a directory and and file name to save the wav file. These messages will not be transmitted over RF.

Back To Top

============================================

Text Box Messages

Text Box Messages 1 & 2
This option enables you to send up to 10 pre set messages messages via the Chat Text Box. Simply enter the data into the required fields. Click the send button to send your pre set message. Please note that the messages will only be sent to the text box when you have a station connected to you.
Admin to Sysop Red Box Messages
Clicking this button will open the section where you can send messages to the sysop of a node into his high alert Red Message Box
DTMF
This option enables you to send DTMF to send up to 10 pre set messages messages in set 2 via the Chat Text Box. Simply enter the data into the required fields. Click the send button to send your pre set message or use DTMF via RF to send the message to the text box. Please note that the messages will only be sent to the text box when you have a station connected to you.

Back To Top

============================================

Text Box Beacons

This option will enable messages beaconed to the text box. Please remember that beacons can annoy some link owners and conferences so keep them to a minimum

==============================================================

Serial Player

Serial Audio File Player

The object of this players is to play pre recorded Audio Files is sequence. A file will play and when finished the next file will get ready to play but will wait until the next selected time before playing.

Test And Play
The test and play button when clicked will cycle through the file that you have on your hard drive
Directory Where Your Audio Files Are
The player will need to know the director where you are holding your audio files the directory must be entered as "C:\YourDriectory\" Do not put any file name in the field only the directory path to the files. The file name MUST be numbered sequentially  as an example  1.mp3 for the 1st file,  2.mp3 for the 2nd file  and so on.

Select the audio file type that you are using mp3 or wav.


Playing Options and Times
Enter the day of the week also the time in 24 hour format that you want the file to play. If you do not want the second time to play leave it blank. A file will play and when finished the next file will get ready to play but will wait until the next selected time before playing.. Note that the file will play xx seconds (Selected by you. between 10 to 59 Secondes) after the selected time to allow of announcements. The next file and playing file will be displayed
To play only once during a selected day simply enter 99 for Hour and 99 for Mins in the 2nd time fields.
Set Start File
If you alter the start file sequence number simply click the "Set Start File" button to reset the start file number
Loop at the end of files
This option when ticked will re play from the start the files once it has cycled through the list and reached the end.
Disconnect All
Disconnect All when ticked disconnects all nodes connected to your node.
Show As Busy
Show As Busy when ticked puts EchoLink in a busy state and stops stations connecting to your node while the file is playing.
Say File (Time Play)
On The Hour , Quarters and half and Half when ticked will play the next file in the sequence. A file will play and when finished the next file will get ready to play but will wait until the next selected time before playing.. Note that the file will play 15 seconds after the selected time to allow of announcements. The next file to be played and playing file will be displayed.
Audio File Beacon
When selected the files can be played at the entered beacon time entered in minutes

Also be mindful of your transmitter when transmitting large files you could damage your radio if you are running high power and don’t have sufficient cooling. You are responsible for your equipment so check with the equipment manufacturer if you are unsure.

Back To Top

==============================================================

Player Utils

Player Progress
The player progress is shown here. The progress bar can be moved if required forward or backward
Stop Player
The stop player button simply stops the file that is playing.
Pause
The pause button simply stops the file that is playing.
Resume
The resume button simply starts the play again where the Pause has been used.

Allow Breaks in Transmission.
This feature was added to allow radios with hardware transmitter timeout timers that can’t be easily reprogrammed. My (VK2EX) FM900 has an inbuilt 4 minuet timer, so I have set the program to unkey the transmitter every 3.5 minuets and leave unkeyed for 6 milliseconds. Just a little click is heard on the RF side but this is enough to reset the timer. You can adjust these settings to your requirements,  The Audio file will also pause while you PTT is off so you will not miss any of the played file this will also allow the CW ident sound off during this break..
Reduce Volume Playback
This option when ticked will when the player is playing reduce in volume what is being played. This is useful when there is already a message or beacon being played and a station from the internet calls on the node the audio level of the message playing will reduce to the level set. The calling station audio level will not be effected when the station stops talking the beacon audio will revert back to its normal level.
Player Audio Settings (Text To Wav)
The Text To Wav (TTW) audio sampling rate can be selected here to improver the sound of the voice you have installed on your system. I little testing here to find the best one for your system. 8kHz8BitMono - 11kHz16BitMono - 11kHz16BitStereo -16kHz16BitMono - 16kHz16BitStereo - 22kHz16BitMono - 32kHz16BitMono - 48kHz8BitMono - 48kHz16BitMono

Be mindful of your transmitter when transmitting large files you could damage your radio if you are running high power and don’t have sufficient cooling. You are responsible for your equipment so check with the equipment manufacturer if you are unsure.

Back To Top

==============================================================

Weather

To use this option you will need to install the FREE weather The Weather Exchange program and have it running on your computer while using EchoProducer. The Weather Exchange is a free PC desktop application that accesses live community weather from the world's largest FREE personal weather station network  http://www.ambientweather.com/weex1.html
I am using version 1.22. If you are using an early version you may need to download the latest free version.

Weather Conditions

The current Weather Conditions window is where the compiled weather information is put at the time of transmission.

Start of Current Conditions
You can type in here a message that you wish transmitted ahead of your weather information. This information could be the location where the weather came from.
End of Current Conditions
You can type in here a message that you wish transmitted at the end of your weather information. This information could be your node information.

Temp
Tick the "Farn" for Fahrenheit, "Cent" for Centigrade or "Cels" for Celsius . This should be the same as you have set up in the Ambient Weather program.

Wind
Tick "mph" or km/hr.  This should be the same as you have set up in the Ambient Weather program
Wind Chill
Tick Add Wind Chill to report will add the wind chill to the report to be transmitted.
Barometer
Tick "inHg" , "mb" or "hPa".  This should be the same as you have set up in the Ambient Weather program
Conditions Beacon
If selected to be used the Weather Conditions will be transmitted to the set amount of minutes set.

DTMF for Conditions and Temperature
A DTMF code can be set here to enable your RF users to call for the Weather Conditions or the the current Temperature. You have the option here to also add the local Time or Date sample time or not have the time added.
No TX When Station Connected to You
This option when ticked will stop ALL weather beacons from being transmitted
TX Weather Conditions Now
Clicking this button will transmit the weather Conditions now
TX Weather Conditions on the Hour or Quarter
This option will TX the weather conditions on the Hour - Half - Qarter where selected. This will replace the main beacons selected in the Idents and Settings section
Text Change
This option enables you to change some of the odd words that the weather program produces. See below for more info.

Weather Forecast

The current Weather Forecast window is where the compiled weather information is put at the time of transmission.

Start of Weather Forecast
You can type in here a message that you wish transmitted ahead of your weather information. This information could be the location where the weather came from.
End of Weather Forecast
You can type in here a message that you wish transmitted at the end of your weather information. This information could be your node information.
DTMF for Forecast
a DTMF code can be set here to enable your RF users to call for the Weather Forecast

Forecast Beacon
Enter the time in minutes that you wish your forecast beacon to be transmitted
Tick the use option to enable the beacon

TX Weather Forecast Now
Clicking this button will transmit the weather Forecast now
Stop Weather Transmissions
When this button is clicked the weather transmission will stop.



Weather Warnings

The current Weather Warning window is where the compiled weather information is put at the time of transmission.

Start of Weather Warning
You can type in here a message that you wish transmitted ahead of your weather information. This information could be the location where the weather came from.
End of Weather Warning
You can type in here a message that you wish transmitted at the end of your weather information. This information could be your node information.
Use Text Info Option
If you don't want the program to read the whole file (which sometimes can be pretty long ) you now can select a pre-assigned text to speech beacon  to go out over the Repeater / Link instead of the news txt file. Something like ( The NWS has issued a weather warning for this area, please tune to blah blah..). Now it just plays a premade general announcement and you can also give the users a DTMF function to actually read the txt warning file over the repeater after the announcement goes out if they want to hear it.

The Stay Silent If No Warning when ticked will only transmit the warning information if there is warning data otherwise will stay silent until Warning data has been sent from the weather program.
Full / Summery
This option when either Full or summery is  ticked enables a summery or full weather warning to be transmitted. Works in conjunction with the beacon above.
Live Warning Announcement
This option will announce a warning when the use box is ticked and will check the updated weather text file produced by the Ambient Weather program. If there is a new weather warning the this will be transmitted. If the node is in use the live weather Announcement will wait until there is a gap in the transmissions and has reached the count down time then will transmit the warning also starting the warning beacon running if option ticked and announce the warning again 1 minute after the 1st warning.
When the warning has cleared a message will be transmitted saying that there is no warning at this time indicating that the warning has finished.
The Use Alert Tone option when ticked will play a pre loaded tone that you may wish to use to play before the main weather warning. This can be used in conjunction with pagers if the correct tones are sent. A delay can be added if after the tone has finished before playing the warning. If you are hearing the tone and no message you will need to increase the time until the message is heard. You will need to experiment here.

Auto Start Warning Beacon  when ticked will automatically start the Warning Beacon which will announce any set warnings at the set beacon time.

Use Beacon tick
This option is normally automatically ticked when the Auto Start Warning beacon is ticked. You can override this if you wish and have the beacon continually send out beacons if required. It will automatically un tick when the repeat warning is set and has reached the total count of warnings.

Warning Beacon
Enter the time in minutes that you wish your warning beacon to be transmitted
Tick the use option to enable the beacon. This option can be auto ticked with the Live Weather Announcement option. See below.
Use Txt Info when ticked will simply transmit the Text info that you have input. Some reports are quiet long all this will do is alert you that there has been a warning.
DTMF can be used via RF to toggle the Warning or Summery beacons
The Repeat beacon can be limited in the amount of times the beacon goes out by placing the amount of repeats that you require. When a new warning is received the counter is re set and will beacon again the amount of times set..

Use Alert Tone with Warning Beacon
The Use Alert Tone option when ticked will play a pre loaded tone that you may wish to use to play before the main weather warning or warning beacon. This can be used in conjunction with pagers if the correct tones are sent. A delay can be added if after the tone has finished before playing the warning. If you are hearing the tone and no message you will need to increase the time until the message is heard. You will need to experiment here. If the alert tone is selected for use with the Beacon the tone will only sound out if the warning is active and will not sound if there is no warning.

File Location
Conditions CSV File. This is the location that the CSV file is held. This file holds the information that the program needs from the weather program. The default is c:\wxex\csv\data.csv This can be changed if your file is put in other places on the hard drive.
Warning File. This is the location that the warning.txt file is held. This file holds the information that the program needs from the weather program. The default is c:\wxex\data\warning.txt This can be changed if your file is put in other places on the hard drive.

Forecast File. This is the location that the metar.txt file is held. This file holds the information that the program needs from the weather forecast. The default is c:\wxex\data\warning.txt This can be changed if your file is put in other places on the hard drive

Software. Select the software that you are using. Default is Weather Exchange.



No TX if Station is Connected
This option when ticked will stop the weather information being transmitted if a station is connected to your node.



Weather Warnings Text Changer
The text changer button will reveal an option that will enable you to change any of the selected words or strings of text as an example the words "T-Storms" could be changed to "Thunder Storms". This can help manipulate the text that was to be transmitted to sound right. 250 characters in each of the fields can be input. If you want to delete a word or a sentence that you have put in the word field simply leave the change to field empty or put a space in the field. You can make a total of 10 changes

DTMF for Short Warnings
A DTMF code can be set here to enable your RF users to call for the Short Weather Warning
DTMF for Warning Summery
A DTMF code can be set here to enable your RF users to call for the Weather Warning Summery

DTMF for Long Warnings
A DTMF code can be set here to enable your RF users to call for the Full Long Weather Warning
DTMF for Europe Warnings
A DTMF code can be set here to send the Weather Europe Warning
TX Weather Warning Now Button
Clicking this button will transmit the weather Warning now


High / Low Temperature Warning

When selected and the Set Temp equals or is less/ higher than the set temperature the temperature warning text will be played followed by the current temperature.

High Wind Warning
When selected and the Set High Wind equals or is higher than the set wind speed the high wind warning text will be played followed by the current wind speed

Weather Warnings Europe



Europe Weather Alert / Warnings
This program uses data from the Meteoalarm web site. It will alert you to the possible occurrence of severe weather, such as heavy rain with risk of flooding, severe thunderstorms, gale-force winds, heat waves, forest fires, fog, snow or extreme cold with blizzards, avalanches or severe coastal tides.
  The web site data updates every 15 minutes

Selecting the URL for your area
Select the Warning URL from the www.meteoalarm.eu Europe
weather. Click on the Weather Warnings from Meteoalarm Web Site button and select your area and copy the URL and paste it in the "Enter URL" field and click the "Set" button and save your date by clicking the Save button.
## IMPORTANT ##
When selecting your URL it is essential that you have the page language set to English before selecting your URL if not the EchoProducer Europe Weather Warning will not show any warnings when they are issued. Your language will be shown at the time of the warning.

***  Compute Alerts  ***
Your computer alert setting MUST be turned OFF when using this option as the noise made when fetching the data from the weather web site can be transmitted. To Stop Click on START - SETTINGS - CONTROL PANEL - Sound and audio devices - Sounds - Scroll down to Windows Explorer
  and change the Start Navigation to None and click OK
Some conferences will Mute you if these Computer noises are heard. This will happen on the *IRELAND* conference so be warned.

Weather Warnings Europe

The current Weather Warning Europe window is where the compiled weather information is put at the time of transmission.

Start of Weather Warning
You can type in here a message that you wish transmitted ahead of your weather information. This information could be the location where the weather came from.
End of Weather Warning
You can type in here a message that you wish transmitted at the end of your weather information. This information could be your node information.
History
A history of Europe warnings can be held here if required

Warning Beacon
Enter the time in minutes that you wish your warning beacon to be transmitted. The Beacon Active check box need not be ticked as this will be automatically ticked by the Warning Announcement section when there is a warning if the Auto Start Warn Beacon box is ticked.

The Repeat beacon can be limited in the amount of times the beacon goes out by placing the amount of repeats that you require. When a new warning is received the counter is re set and will beacon again the amount of times set and transmit the warning to the amount set. If the Repeat Warning is not ticked the warning will continue to send the warning information at the amount of minutes set until the warning ends and returns back to a none warning state

Warning Announcement
Tick the "Use Warning" option to enable the Warning Beacon to start checking the website data for warnings. Enter the time in minutes that you wish your warning announcements to check for updated information regards any warnings

DTMF can be used via RF to request the current weather warning. See DTMF section

Warning Levels

Yellow:

The weather is potentially dangerous. The weather phenomena that have been forecast are not unusual, but be attentive if you intend to practice activities exposed to meteorological risks. Keep informed about the expected meteorological conditions and do not take any avoidable risk.

Orange:
The weather is dangerous. Unusual meteorological phenomena have been forecast. Damage and casualties are likely to happen. Be very vigilant and keep regularly informed about the detailed expected meteorological conditions. Be aware of the risks that might be unavoidable. Follow any advice given by your authorities.

Red:
The weather is very dangerous. Exceptionally intense meteorological phenomena have been forecast. Major damage and accidents are likely, in many cases with threat to life and limb, over a wide area. Keep frequently informed about detailed expected meteorological conditions and risks. Follow orders and any advice given by your authorities under all circumstances, be prepared for extraordinary measures.

Country feeds to Europe Weather Warnings
Austria, Belgium, Switzerland, Cyprus, Czech Republic, Germany, Denmark, Estonia, Spain, Finland, France, Greece, Croatia, Hungary, Ireland, Iceland, Italy, Luxemburg, Latvia, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Sweden, Slovenia, Slovakia, United Kingdom

Back To Top

==============================================================

Language TTS Text

This option will enable you to change the embedded TTS (Text To Speech) Text. It was especially done as to allow other languages other than English to be used with EchoProducer. The default words are to the left of the Text field simply change the text to the equivalent in your language
Warning Text Messages Language
This button will take you to the are where you can change the embedded text messages sent to the text box
Voices Available
When using the voice selection within the text boxes that you wish to use simply add the identifier (0) or (1) etc for the voice that you want to use so for example if you want to change the voice for a particular message you would start the text box message with the identifier. example "(1) your text" this would say the words "your text" using voice (1). This only works at the start of a text message. the highlighted text boxs are the only ones that this option will work



==============================================================

Warning Text Messages Setup


Warning Text Messages Language
This button will take you to the are where you can change the embedded text messages sent to the text box to tour own language



==============================================================

Ambient Weather Program

Ambient Weather Program

Download the FREE Ambient Weather program from  http://www.ambientweather.com/weex1.html

Setup

Setting up the program must be completed before it will work with EchoProducer. Once you have downloaded and installed the Ambient Weather program.

How the program starts and when it updates the weather data needs to be set up by going to --> Settings --> General Program Settings --> in the Update weather data every box select how many minutes that you wish the data updated. I have mine set to 1 minute. --> now select put a tick on the Launch program at Windows start-up box. Then click the close button

You must let the program know where you are located for your weather by going to--> Settings --> Your Location and filling in the appropriate boxes for your area. Then click the close button

Now you need the select the units that you wish to use by going to --> Settings --> Units --> Now click on the appropriate boxes  for your use. Then click the close button.
Remember that you need to also set the units in the EchoProducer program (Weather Conditions) so it transmits the Units correctly.

You need to tell the program where you want it to put the weather information data so as EchoProducer can use this information.. To do this go to --> Settings --> Data Export (Advanced). In the csv Directory Location enter "C:\wxex\csv" and in the Update weather data every box select how many minutes that you wish the data updated. I have mine set to 1 minute. Then click the close button

The data file for current weather should be located “C:\wxex\csv\data.csv”
The data file for forecast weather should be located “C:\wxex\data\metar.txt”
The data file for weather warnings should be located “C:\wxex\data\warning.txt”
If the files are not in these locations you will need to have a search and put the path to the location on your hard drive like that shown above into the appropriate section in the program..

That's it. That's all I done when I set up my Ambient weather program for EchoProducer.

Home Weather Stations
There are a lot of weather stations that are used and it would be out of the scope of the EchoProducer program to try and cover them all. What I suggest that you have your weather station upload your weather data to Weather Underground. There are numerous programs available like Weather Display http://www.weather-display.com that will work with most weather stations and will upload to Weather Undergrounds website and the Ambient Weather program will take the information needed to interface with EchoProducer

Back To Top

==============================================================

Curtesy  ID - Repeater / Link Timings

Curtsey Tones

The curtsey tone option is a simple to use application to add a courtesy tone to the end of the all transmissions.
You have the option to send your courtesy tone using pre made audio files in wav / mp3 or sending in the usual way with CW. Hang time before ID, Anti-Kerchunker, Send different CW idents for RF traffic and IP. Send different audio file tones for RF and IP traffic. Option to tell RF station using your link that there are no stations currently connected with your TTS message. Indicators showing the sate of the program. Volume control for the audio files that will not effect the audio settings of your node. Audio speed control. Make your own audio files and use them with this program.

Hang Time before ID
Enter the hang time that you wish to use before the CW / Audio Ident is Transmitted (500 ms Default)

Anti-Kerchunker
This option will help against the phantom RF user who keys the mic for a second just to get e  put a delay before the CW / Audio ident

CW Ident
RF CW ID and Internet CW ID letter are entered here.
The option here enables you to select different letters for the curtsey (internet or RF users.) The speed and volume of the CW can be altered with the EchoLink program in the usual way ( Tools - Sysop Settings - Ident - settings). If you do not want any letter in Morse sent simply enter a ":" into the CW Letter field.

Audio Ident
RF Audio ID and Internet Audio ID audio indicator file names are held here. These are normally "beep boop" type sounds. Different sounds can be selected for Internet  & RF end of over's. I'm sure will have fun playing with different sounds until you find the one suitable. There are file loading and test buttons.

No Connections
This when ticked will inform your RF users that there are no stations connected to you node. This option is useful as a connected station might disconnect during an RF users over. The Use TTS message option can be costumed to your message to do this you will need to change it in the Language TTS section . The CW option letter can be more than one character

Volume
This volume control sets the audio level and is independent to the EchoLink audio

CW or Audio Ident
Simply select the type of curtsey ident that you wish to use.

Delay after audio
There are 3 settings here - "None" for no delay.  1 or 2 simply adds a bit more PTT to the end of the curtsey tone normally this would be set to 1 for normal link operation

 Save
This button will save all your changes to any of the fields.

Where are the Tones and can I play
Oh Yes you can play here no problem. The Directories for the audio files can be put where ever you want them. The default directory when you 1st load the program is located at located at   C:\Program Files\EchoABC\  Here you will find the audio files I have made to start you off. You must have the same amount of files in your directories when you start to have a play.

The good thing is that you can make your own audio files and replace the ones that I have made to suit your needs

Here is a list of Curtsey files you need (wav or mp3)

RF.wav = " RF Audio ID"
IP.wav = "Internet Audio ID"

PTT select
RTS or DTR that you are using to control the PTT on your radio. This is set in the settings section and is only used here as information

Back To Top

==============================================================

News Player

News Player 1 - 2

News Player 3 - 4

If you play the news for your RF users then you will be happy with this option as it will play a news file at predetermined days and times

Audio File 1 2 3
Enter the path you the news file that you want to select for your news
On the Audio File 3 there is an option to send a second file after the first has completed, In Australia the WIA national news is played then followed up by a local broadcast, just tick the box labelled “Add 2nd file to end of Audio File 3". The WIA news is traditionally played twice in one day AM and PM so a second time has been included in the Audio File 3 section.

Day of the week
Select the day or days that you want your news to be transmitted

Time
Enter the time or times that you wish your news to be transmitted. If only one time section is required simply enter 99 in the time fields that are not required.

File
Clicking this button enables you to select a file that you wish to transmit

Play
When clicked plays the selected Audio file

Pause
The pause button simply stops the file that is playing.



Resume
The resume button simply starts the play again where the Pause has been used.

Stop
Stops any playing Audio File

Audio File 1,2,3 as Beacon
Each of the Audio files can be used as a beacon if selected. Enter the beacon time in minutes and at the end of the countdown the selected file it will be played. If your node is in use the file will not be played. The node Status functions will not operate when file is being played as a beacon (Disconnect all, Node Busy or Warning).

Volume
This volume control sets the audio level and is independent to the EchoLink audio

Node Status
There are 2 options here that I recommend using while playing the news.

Disconnect All Before Playing File
Disconnect All Before Playing File option when ticked disconnect all connected station including any auto connect  Echo Friends. Echo Friends will reconnect when the news file has finished playing. Disconnecting all connected station is good practice as you don't want internet traffic calling CQ or holding a QSO while the news is being transmitted.

Set The Node Busy During File TX
This option when ticked will show your node as busy and stop stations connecting to you during the news audio file playing as you don't want internet traffic calling CQ or holding a QSO while the news is being transmitted.

Warn 1 Minute Before Disconnecting for Local news
When ticked a text message also an audio message to the RF users that the news will be read out in 1 minuets time.
Text Message Reads  "1 Minute Warning Auto Disconnect for Local News." This can be changes to meet your needs.
An RF message is sent to say that the news has ended again this can be changed.

Weather Options
The option to play Weather Conditions or Weather Forecast is available simply by ticking the appropriate selection. The news in the selected option will be disabled. It is possible with news player 3 selected and the weather selected in the Play 2nd file section to play the weather report immediately after the news. Check the photos above to see how I have set mine.

Back To Top

==============================================================

News Downloader

 News Downloads  .mp3 Downloader

Enter the Website or FTP URL where you wish to download your audio file from. Indicated above the URL address is the file name where the selected file will be saved and the file name for that file. These file name are used in the main file player as shown above. Each individual URL can be downloaded at any time by clicking on the appropriate URL button. Download will not take place if the Use tick is not entered..

There are 2 Scheduled day and time sections that can be can be used to download the audio files by ticking the appropriate day and entering the time you wish the downloads to take place.


Files 1 & 2 are downloaded by the scheduler immediately beneath them that is in the same frame
Files 3 & 4 are downloaded by the scheduler immediately beneath them that is in the same frame

Files that are downloaded will be saved as shown
Audio File 1 = C:\Program Files\EchoProducer\News1.mp3
Audio File 2 = C:\Program Files\EchoProducer\News2.mp3
Audio File 3 = C:\Program Files\EchoProducer\News3.mp3
Audio File 4 = C:\Program Files\EchoProducer\News4.mp3

This screen pops up to let you know that the file has downloaded

Back To Top

==============================================================

Text Box Messages

Text Box Messages

Messages Time Stamping
When this option is ticked your Text Box Messages will be time stamped.
Greeting Messages
This option enables you to automatically send greeting messages to stations connecting to your node.
Select the message that you want sent on the connection of a station to you node. Messages can be up to 160 characters.
Messages 1 to 9 can be amended and saved. Message 10 simply says a station as connected or disconnected.
Randomise Greeting
This option when clicked will randomise message 1 to the number selected. The will enable you to have a random message sent each time a node connects to you.
Delay Before Sending Message
A delay can be added before your message is sent. I have found 3 seconds is about right
Option 10 Auto selected
We have found that there are a  few stations forget to set the messages to option 10 when connecting to a Repeater, Link or *CONFERENCE* so this option will be automatically set for you as this will stop the unnecessary text going over the Conference Servers

Back To Top

==============================================================



DTMF .mp3 / .wav  http:// & Text file Player


DTMF .mp3  .wav .txt   http://   & Text file Player
This is a very useful option that your RF users can use. This option can hold help or information that your RF uses can access

DTMF
 Simply enter a DTMF code for each of the audio files that you have selected.

File Location
The file location field holds the path and file name of your pre made audio files. the files can be .mp3 , .wav .txt or urls (http://)  although the player will play nearly all audio formats and text files. You can enter a URL to a web site in one of the 20 fields also the DTMF. This web page that contains text will be transmitted. This is for web pages that have data like Weather - Traffic or any other useful information  that you can legally transmit
Webpage URL
You can  enter a URL to a web site one of the 20 fields in the format of "http://your url....". This web page that contains text will be transmitted. This is for web pages that have data like Weather - Traffic or any other useful information  that you can legally transmit. Only the text portion within the web page will be extracted  The program recognises the formats and takes the appropriate action. A time delay can be set this is to enable the program time to go get the data process it than play the results. Default is 3 seconds. If its to short it will not play your data.
Text Changer
This can help manipulate the text that is to be transmitted to sound right. 250 characters in each of the fields can be input. If you want to delete a word or a sentence that you have put in the word field simply leave the change to field empty or put a space in the field. You can make a total of 10 changes
Test Button
To the right of the file button there is a small test button. This enables you to test the audio file.

Stop Play
Stops a playing file when clicked

Volume
This volume control sets the audio level and is independent to the EchoLink audio

Save
Saves any changed data

Back To Top

==============================================================

DTMF Control - Net Scheduler

Net Scheduler

DTMFctrl and Nets

This option allows your RF users Select / Disconnect by the same DTMF a selected station. There is also an option to Connect / Disconnect a group of stations with one DTMF to Connect and one to Disconnect the group.
Callsigns
Simply add  Callsigns, Links, Repeaters or Conferences

Con / Disc Button
This option will connect or disconnect the selected station. This is the little button to the right of the DTMF field. Click one to connect and click again to disconnect

DTMF
Enter the DTMF codes that you want the users to use.
The single callsign DTMF will connect or disconnect a station when used
The Group callsign can be connected with one DTMF and Disconnected with another DTMF.
DTMF For Time
Enter the DTMF code that you want your RF users to use when they request the time from your node
The tick box should be ticked to enable this function
  • Timed Connect
  • This option will enable you to connect using DTMF to a node and stay connected while in use RF / IP and the time until the counter reaches the set minutes. Works well with the *ECHOTEST*
  • Countermeasures



    Disconnect All and Last Connected
    We have added a couple of countermeasures against the phantom DTMF button pusher who loves to disconnect stations that connect to your node
    The Disconnect All DTMF and Disconnect Last Connected node are controllable using DTMF known to you and your admin to control if the Disconnect all or last connected.
    When enabled and the Re-Enable time has been set  by ticking the Use Delay Tick Box. The appropriate DTMF will stop your phantom DTMF from Disconnecting stations from your node until the re-enable timer has elapsed or you want to end the function with  the disable DTMF.
    Select a different DTMF codes in the EchoLink program for your own use only known to your admin controllers and have all your users use the DTMF that you have control of.
    The 1st seconds of TX don't allow DTMF Con/Disc
    This option enables you to have a delay accepting DTMF for the connection of your groups or list of Single calls
    You have Enable or Disable function DTMF codes that you can enter
    Use Delay tick box to enable the function
    Set Time before accepting DTMF


    Net Scheduler 1 to 4 Also set 2

    This option will enable you to hold possible drive time nets
    Each section has the day of the week and time the net starts. The connection is delayed by 15 seconds as to allow for any beacons or the time being transmitted.
    Enter the connect node / conference call sign is that you want to connect to for the net.
    If you want the node to be disconnected after the allotted time you set on the Disconnect Net Callsign After time simply tick the Use tick box.
    If you want all stations connected to your node at the time of the net simply tick the Disconnect All tick box.
    If you want your node set to busy while the net is in operation simply tick the Show Busy box. the Busy status will end at the end of the net time.
    The Future Date Net Scheduler enables you to set a date and time in the future.

    You you do not want to connect to a node but just keep it local simply enter LOCAL into the Net Call Box

    Listen Only Off Button
    This button will force the Listen Only Off setting to off. (Force you cack to normal TX / RX use)


    Daily Scheduled Connect / Disconnect
    This option enables to to set up a daily scheduled connect / disconnect. Disconnect All or specified station option also list as busy option.
    Connect station is available with List as available option when enabled.
    Any combination during Connect / Disconnect can be used.
    Disconnect ALL from the link if idle
    This option is very useful as it will keep you connected to your selected node and enable your RF users connect your node to other station BUT if your RF users do not disconnect the nodes they have connected after the entered time set by you the all stations will be disconnected and the selected node will be re connected. If selected as long as there is RF going into your node the station will stay connected as long as the over dose not exceed the allotted time in minutes.
    Profiles and beacons
    The Profiles & Beacons button when clicked opens up the Profiles and beacons option panel as shown below in the next section.

    Busy / Listen
    The this option will enable you to set your node as "Busy"  or "Listen Only" using the selected button or using DTMF via RF

    Back To Top

    ============================================

    ReStart / Close Down

    Re-Start

    This option will enable you to re-start your computer Using DTMF / Day and Time or using DTMF or close down EchoProducer / EchoLink

    Back To Top

    ==============================================================

    Day & Time Beacons


    Day and time Beacons
    Day and time beacons can be very useful for a number of uses. Things like transmitting information about up coming meetings and events. There is a choice of 4 beacons that can be used on a daily bases of in the Future Dates and Time can be used for events that are a few weeks or months away. Two Times per day can be set

    Day of the week
    Select the day or days that you want your news to be transmitted

    Text fields and File Location
    The Beacon text or path to the desires file on your hard drive .txt, .wav, .mp3. The program will recognise the format automatically  and take the action necessary

    File
    This button will open a browser that you can use to select the file that you wish to use for a Beacon. (.txt, .wav, .mp3)

    Time
    Enter the time or times that you wish your Beacon to be transmitted. If only one time section is required simply enter 99 in the time fields that are not required. Two times can be set per day or future date.

    Future Date
    Enter the Future Date that you wish the beacon to be transmitted if this option is used there is no need to have any of the days ticked. Simply pit in the times in the appropriate fields

    Test
    This button test the beacon that you have setup. Its always good to check that the beacon goes out as it should.

    Use As Beacon Every xx Minutes
    This option when ticked will enable you to set up a day and time or future date to start and stop a beacon that will run for the pre set interval in minutes. Note in this configuration the time option changes the times to Start Beacon and Stop Beacon when the "Use Beacon Every ..."  is ticked. Note the Beacon Active tick will automatically tick its self at the start time and un tick its self at the end time so there is no need to tick this unless you want to start the beacon now and set the end time to stop.

    Use when no station connected to node
    This option will when ticked only send the selected beacon Only when there is no stations connected to your node.

    Beacon On Disconnect
    This button option will send the selected beacon on after the node has disconnected. This option works in conjunction with the Use when no station is connected to node option.

    Stop Beacon Transmissions
    This button stops the current transmission of the beacon.

    Back To Top

    ==============================================================

    Profiles & Beacons Scheduler

    Profiles and beacons is accessed via the Scheduler option accessed. See above option
    Profiles
    This option enables you to select / change to the profiles that you have set up using the EchoLink program. Simply enter the Profile name, Day and Times that you want the profiles to change. MAIN is the default profile set in EchoLink.
    Beacons
    At the same time you can select the beacons to change from one set to the other
    DTMF
    A DTMF code can be added to enable the RF user to select a profile. The small button enables the PC user to change to the selected profile

    Back To Top

    ==============================================================

    Admin to Sysop Red Box Message

    Admin to Sysop Red Box Messages
    This option is where you can send messages to the sysop of a node into his high alert Red Message Box. If you needed to mute a node you can send the owner a message station why you have taken admin measures to control the conference
    Callsign of Node to send message to
    Simply Enter the FULL callsign of the node to where the message is to be sent. This callsign will automatically be entered if you have used the Mute Last Talking option in the Admin Conference Controller section.
    Send Message as a Quote
    When the this option is ticked the message will be sent as a quote message.
    Send
    When the Send Button is clicked the adjacent pre set message will be sent to the callsign entered and sent to the node owners Red Box Message box

    ==============================================================

    Messages for Sysop's Attention

    This screen will only appear if a message for the sysop has been left. Messages like Mute's, Automated Disconnects and other messages will be shown here that is addressed to your node. The information will include the Date - Time - Who sent the message and the message.

    Messages to other sysop owners by simply entering the node callsign and type the message in the message field and either press return or click on the send button.

    The automated messages if addressed to your node will be displayed. This is very useful as you will know if there has been a problem with your node.

    Messages can be manually sent sent using the text box or text box chat to the sysop of the node using the syntax of star star callsign of the node star star and then your message. for example  **EI2IPG-R** Your Message. You can leave off the " -L or -R " example **EI2IPG** or **ei2ipg** so a message sent informing the sysop of a problem or just a general message would look like this  "**EI2IPG-R** Your node sounded good today de Peter EI4JR". Remember this only works with nodes running this software

    Back To Top

    ==============================================================

    The Conference Controller

    The Conference Controller

    The Conference Controller is a simple to use utility that allows the Sysop/Owner of a *CONFERENCE* or their admin controllers to send some of the commands with a click of a button.
    The bridge software that is used for the conferences accepts commands normally via the text input on EchoLink. This utility is not to replace this function but to assist and make some of the more used commands easier to enter.  All functions will not be available until you have logged into your conference with your Admin or Sysop Password.

    Conference
    Enter your conference name example *IRELAND*. There are 10 conferences that can be held in the system these are selected by clicking the button 1 to 10. Conference By clicking on one of the buttons (1,2 or 3 etc ) this will select the conference, disconnect all connected and connect the selected conference. The conference status will be shown.

    Conference Setup
    Enter your password. You can log on as ether as an Admin or Sysop by selecting the appropriate button.


    EL - IRLP and passwords
    Enter your password. You can log on as ether as an Admin or Sysop by selecting the appropriate button. There are some conferences that are EchoIRLP and have some changes who they are controlling the conference so selecting the EL (EchoLink) or IRLP ( EchoIRLP). Simply select the one that works on your conference.

    Type Message or Dot Command via the Chat Section of the program
    Here you can send messages to the users and all messages will be time stamped so as on their system they will see your local time that the message was sent. Use it as you would use the text message window in the EchoLink program.
    Any of the Conference dot commands and be sent from here. Example “.mute call”

     Connect Station to Conference
    These fields enable you to put 2 stations that you may wish to connect with a simple click of the appropriate button.

    Save you settings
    When you have completed your input click on the Save Conference, Password and Stations Settings Button. Your setting will load in next time you start the program.
     There are a lot of commands with the bridge conference program and I have only put my most commonly used commands. I’m sure that your needs could be different to mine.
    Alt key plus the underscored letter on the buttons will give you quick access to those functions.

    Mute Station
    When pressed asks for the call of the station to be muted. When entered and OK is clicked the station is muted and a message sent to the text screen telling the offending station that they have been muted.

    Disconnect Talking Station
    This button enables you to disconnect the station that is causing a problem while they are transmitting. (Ver 1.02 of thebridge onward)

    Mute Talking Station (Persistent)
    This button enables you to mute the station that is causing a problem while they are transmitting. This is very useful as once they are muted other action can be taken. If this button is used the person will need to contract you or your admin to release the mute as it will stay with the station for ever till released.

    Mute Message
    When clicked asks for a call sign and when entered and OK is clicked a message is sent to the text screen telling the offending station that they have been muted. Normally you would use this if you have used the Mute Talking Station button as that button only mutes the talking station.

    The mute message sent
    *** CALL*** You have been Muted from the server due to your link or a link connected to you causing a problem. When problem sorted disconnect and reconnect to remove the Mute. <<Admin>>

    Unmute All
    Unmutes all muted stations connected to the conference.

    You may need to click on the text box tab to see some of the replies from the conference

    Unmute Station (Persistant)
    When call sign or the station that was muted with the persistent option is entered the permanent muted station will be unmuted and a message sent via the text box  “**** CALL **** You have been UnMuted. <<Admin>>”.

    Who Is Muted
    When clicked shows all stations who are Muted / Muted Persistent.

    Connect station
    Enables you to connect a station to the conference.

    Disconnect Station
    Disconnects the selected station from the conference.

    Ban Station
    Offending stations are banned from the conference. Their is an option to have a timed Un-Ban

    Remove Ban
    Station removed from the ban list.

    Who Is Banned
    See who is on the banned list.

    List Users
    Show stations who are logged on to the Conference
    Lurk / De Lurk
    Enables you to go into Lurk (Hidden from listings on the conference) or De Lurk (Be seen on the Conference)
    "lurk" and "delurk" (not available on all conferences)
    The EchoLink system is very different than "real" radio in one important way everyone knows who is listening. Sometimes you might only want to monitor a channel, but not get involved in a conversation. This is particularly useful for nets when you want to listen, but don't have anything to contribute.
    The "lurk" command allow you to suppress the listing of your callsign as an active member of the conference, but you will still be able to listen. You can rejoin the conference at any time by using the "delurk" command or by simply transmitting.

    Auto Con/Disc station to/From Conference
    This option enables the sysop of a conference when logged on to connect or disconnect up to 2 selected stations to or from their conference on the selected days and times entered. If any of the times are not required simply enter "99" in the required fields
                  RESET Conf. Connect
    I have introduced the RESET button which disconnects ALL and reconnects to your selected conference which gives you the listing of all connected to the conference. Also forces the controller into admin mode. This is done simply for those who do not have a good internet connection and need to refresh the connection and give you control over your conference. If you have your node set not to accept any connections this works great and is very useful.
    Utils
    This section has been added to enable you to see an updated list of stations connected to the conference

    Refresh Conference  Listing
    The listing refresh is now automatic. (Many Requests for this)

    List Users
    Ticking the Use option will send the .list command to the conference so as you can see the stations in the panel who is connected. This will repeat every 60 seconds. The use option will disappear and the list option will be automatically start when you are using the conference filter. You will not be able to repeatedly press the list button as the bridge will not allow this. Normally there must be a gap of 35 seconds before a re-list can be achieved..

    List Users

    When List Users option in use and the Use web Stats is ticked the list information is sent to a website that is accessible by using the Conference Stats Button or can be viewed at http://www.m0vrr.co.uk/EP/  Other nodes that are using this option will also be seen. The small button with the X on it will take you to the web page where the information can be viewed This is experimental at the moment


    Warning Text Messages Language
    This option enables the embedded text messages to be change enabling different languages to be used.

    Attributes
    This option when clicked will show you you the attributes meanings ( The letters at the end of the list callsigns)

    Stay Connected
    When ticked the conference will stay connect and automatically re connect if disconnected. Note if you have been disconnected you will need to click the appropriate log on button to log you back into the conference

    Conference selection
     By clicking on one of the buttons (1,2 or 3) this will select the conference, disconnect all connected and connect the selected conference. The conference status will be shown.

    Conference Connected
    When the selected conference is connected this will be displayed.

    Admin Button
    The admin button Sends the Admin Password when the conference is connected and is only available while the "Auto Enter Admin Password" box is un-ticked

    Time Stamp All Messages
    This option when ticked will time stamp all messages that you receive through the text box

    Stop dot commends showing
    When ticked if another station connects to your node they will not see the Dot commands that you send. This is especially useful when the ".list" command is sent every 35 seconds to refresh the list of connected stations to the Conference.

    Auto Mute
    This option when ticked will automatically mute a station or stations exceeding a set key down mute time. A 1 minute warning in the text box is given before the mute is put in place. When the station s muted another warning is sent saying that a mute has been put in place. If stations do not leave enough gap between over's this has the same effect as key down and the station talking at the end of the set time in minutes will be muted. The mute can be removed by the stations muted simply by disconnecting and reconnecting to the Conference server. Information is put in the text box what the muted station has to do.
    Text box control for timeout minutes (4 minutes) added to enable all admin to have the same timeout of 4 minutes set on the conference using the "/timeout4/" command in the text chat.

    Send Pre set message
    This option enables you top have a pre set message that can be sent when the send button is clicked.

    Disconnect Talking Station
    This button enables you to disconnect the station that is causing a problem while they are transmitting.  (Ver 1.02 of thebridge onward)

    Mute Talking Station (Persistent)
    This button enables you to mute the station that is causing a problem while they are transmitting. This is very useful as once they are muted other action can be taken. If this button is used the person will need to contract you or your admin to release the mute as it will stay with the station for ever till released.

    Text Box Message
    This Button opens a panel where you can store and use the pre set message screen See above

    Who Is Muted
    When clicked shows all stations who are muted.

    Unmute All
    Unmutes all muted stations connected to the conference.
    This will no remove the Persistent muted station

    Timed Ban / Mute
    This button opens the Ban and Mute options

    Net Control Button
    Can be used for remote control of nodes  See below.

    Use Web Stats
    This option will enable you to send to the website the stats for your conference. Using this control can cause server busy nag screens.

    Multi Connecter
    This option when clicked will give you the option to connect / disconnect up to 40 stations quickly to your conference.

    RESET Disconnect and Re Connect
    I have added a panel that will display the connected stations and information. This is not all that successful at the moment as it will not display correct when a station connects to you and then disconnects so I have introduced the RESET button which disconnects ALL and reconnects to your selected conference which gives you the listing of all connected to the conference. If you have your node set not to accept any connections this works great and is very useful.

    Connect station
    Enables you to connect a station to the conference.

    Mute Message
    When clicked asks for a call sign and when entered and OK is clicked a message is sent to the text screen telling the offending station that they have been muted. Normally you would use this if you have used the Mute Talking Station button as that button only mutes the talking station

    The mute message sent
    *** CALL*** You have been Muted from the server due to your link or a link connected to you causing a problem. When problem sorted disconnect and reconnect to remove the Mute. <<Admin>>

    Disconnect Station
    Disconnects the selected station from the conference.

    Mute Station with Message
    When pressed asks for the call of the station to be muted. When entered and OK is clicked the station is muted and a message sent to the text screen telling the offending station that they have been muted. There is a timed Un-Mute option that can be selected before the button is clicked. If ticked and the button pressed the selected station will be muted and a timer will start and when the allotted time has elapsed the selected will be un-muted and a message sent to the text box informing offending station has been unmuted.

    Mute Talking Station with NO Message
    As above but without a message. If ticked and the button pressed the selected station will be muted and a timer will start and when the allotted time has elapsed the selected will be un-muted and a message sent to the text box informing offending station has been unmuted.

    Disconnect Last Talking Station
    This button enables you to disconnect the station that is causing a problem while they are transmitting or was the last talking station.  (Ver 1.02 of thebridge onward)

    Mute Last Talking Station
    This button enables you to mute the station that is causing a problem while they are transmitting or was the last station to talk. This is very useful as once they are muted other action can be taken. Yu now have the option of sending the Time, Callsign and a message saying that the offending station has been Time Muted. The time panel will open showing the station muted and the set time that the station will be unmuted

    Unmute All
    Unmutes all muted stations connected to the conference.
    This will no remove the Persistent muted station

    Unmute 1 Station with Message
    When call sign is entered and the muted station will be unmuted and a message sent via the text box  “**** CALL **** You have been UnMuted. <<Admin>>”.

    Unmute 1 Station with NO Message
    As above with no Message
  • Timed Ban
  • This button will take you to the Timed ban / Un-Ban setup

    Back To Top

    ==============================================================


    Conference Filter


    The conference filter is is used to control the connected station that have the EchoLink Multi Conferencing set on there nodes. We have so many on the *IRELAND* conference we had the situation where nodes were piggybacking of the back of some connected nodes and may have caused a problem with CW idents, DTMF playing etc and the directly connected node got the blame and ended up muted or kicked from the server because of others. We found that not allowing multi conferencing cured the problem.

    This option does not stop a node connecting to your conference it simply take set action when they transmit.

    It is suggested that only one station running the filter at any one time on your conference

    For this to work correctly make sure that the Text Box Chat is enabled.

    Containing Both words
    Both words or symbols must be in the "Station Talking" field for the condition is true and Disconnect the talking station. Both the "[" and "]" should be left as this is used to highlight a node that has Multi Conferencing set.

    Constant Filter
    This option enables to to have a nodes permanently in your filter. The small button to the right of the field when clicked simply clears the selected field.



    Changing Filter
    These fields will change when the timed filter is active and place any node that has Multi Conferencing enabled into one of the fields. The "Clear All Changing Filters" clears all the Changing filters fields.
    Beacon Filter in Use Every 30 Minutes
    This option hen ticked sends a message every 30 minutes to the text box informing all connected users that the conference filter is in operation the message sent is

    "Multi Conferencing Filter Active. If you have Multi Conferencing set on your node Please disable it. Thank You. << Admin >>"

    Station List
    When the "List Users and Add Conferences to Filter" button is clicked this will display all stations connected and each node that has Multi Conferencing set is highlighted with "##". These stations are put in the Changing Filter fields in readiness if the stations tries to transmit.

    Depending what you want the filter to do you simply select Disconnect, Mute, Disconnect Now or Monitor Only. If ether Disconnect or Mute is selected when a node trips the filter the action you have selected is acted upon and a message sent into the text box accordingly. If the option selected is to disconnect the node the message is sent first so they know why they have been disconnected also any restriction time added to the message. The time restriction is the time that the timer has left before re set.

    Sort List
    When clicked this will put the node list into alphabetic order when pressed again will put the list back to normal
    Stations Disconnected
    This panel shows all the stations that have been disconnected from your server also the time added for reference
    Exceptions
    This enables you to set an exception which will allow maybe another conference that you want connected to your conference and not have any action taken when it is used.
    Timed Filter
    When ticked this activates the Timed filter option that will check the filter and tack the selected action when the time has been reached

    Use Auto Re-Set
    When ticked will reset your connection to the conference you the admin

    Allow Main *Conf*
    When ticked will allow all connected conferences like *IRELAND*, *AUSSIE* etc to send conference traffic (exception for all main *Conferences*)

    Allow thebridge and EchoIRLP
    When ticked will allow all connected nodes using thebridge software. A good majority of conferences and EchoIRLP uses thebridge software
    Use Filer
    When ticked this activates the filer

    If you are a conference owner and want to be able to use this option you must apply to Peter EI4JR at peter@ei4jr.com. for it to be switched on for you Ino need from you is Your Name, Callsign  the node that you will be running the program from for example " Name Peter, Call EI4JR, Node EI2IPG-R"

    Back To Top

    ==============================================================

    Sysop Power Text Box Filter

    This option enables you to have a little more control of the conference text box. When selected words are seen in the text box action can be taken. This is very useful when you have station advertising on your conference or annoying text that appear. This option is accessible via the Conference Controller panel.

    Back To Top

    ==============================================================



    Timed Ban / Un-Ban / Timed Un-Mute

    This option enables the sysop of a conference server to ban a station for set periods of time.

    This is most useful when you know when there are Drive time nets or other type of nets that you do not wish going through your conference. It seems a bit drastic to place a ban on a station but this is done due to stations having auto connect active on there system.

    Set the Callsign, Days of the week, Start ban time and Un-Ban time

    This obviously could be used for punishing timed bas as well. Use this option wisely and with full consent of the station you are placing a ban on

    Timed Un-Ban

    If ticked and the button pressed from the Conference controller the selected station will be banned and a timer will start. A message sent to the text box informing offending station has been Time Banned. When the allotted time has elapsed the selected station will be un-banned. Callsign and set minutes can be changed at any time. The Use Un-Ban tick box must be ticked to start the timer. The Timed Un Ban message will be "Conference Name  **** CALLSIGN **** Re-Connect Restriction has been removed. <<Admin Bot>>"

    Timed Un-Ban data is not saved.

    Timed Un-Mute

    If ticked and the button pressed from the Conference controller the selected station will be muted and a timer will start. When the allotted time has elapsed the selected station will be un-muted and a message sent to the text box informing offending station has been un muted. Callsign and set minutes can be changed at any time. The Use Un-Mute tick box must be ticked to start the timer.Timed unmute message will be "Conference Name **** CALLSIGN **** You have been UnMuted. <<Admin Bot>>" Timed Un-Mute data is not saved.

    Back To Top

    ==============================================================

    Text Box Control


    This option enables you to control your link from another node via the Text Box. Control of your link is done by sending Text commands using another node, iPod Touch or iPhone. The commands will only be accepted by your node from one of the six Control Callsigns you have entered. Nodes who are NOT on your list who send the text command will be ignored.
    Control Callsigns
    Enter the callsign of the nodes that you want to have Admin control of your Text Box node Commands. Node Callsigns that are NOT on your list who send the text command will be ignored.
    Auto Connects
    This Text Box Command enables a remote node to turn On / Off  your auto connects. Set the time that you wish the Auto Connects to be switched on again at the end of the countdown. This time can be set by you. The "Timer in Use" tick will ticked / Un Ticked automatically when when the appropriate command is received. The Text Box commands can be changed and saved if required.
    Example Text sent to your node to turn off the Auto Connects  CALLSIGN COMMAND <60> Example =  "EI2IPG-L Auto Off" or "EI2IPG-L Auto Off 60". The 60 added to the last command will set the countdown  time to 60 minutes. To turn the Auto connects back on "EI2IPG-L Auto On". (Without the " "). You will get a text box confirmation of a successful command.  The text commands are not case sensitive
    List As Busy
    This Text Box Command enables a remote node to turn On / Off  your EchoLink Busy Status. Set the time that you wish the List As Busy to be switched off again at the end of the countdown. This time can be set by you. The "Timer in Use" tick will ticked / Un Ticked automatically when when the appropriate command is received. The Text Box commands can be changed and saved if required.
    Example Text sent to your node to turn On the List As Busy  CALLSIGN COMMAND <60> Example =  "EI2IPG-L Busy On" or "EI2IPG-L Busy On 60". The 60 added to the last command will set the countdown time to 60 minutes. To turn the Auto connects back on "EI2IPG-L Busy Off". (Without the " "). You will get a text box confirmation of a successful command. The text commands are not case sensitive
    Listen Only
    This Text Box Command enables a remote node to turn On / Off  your EchoLink Listen Only Status. Set the time that you wish the Listen Only to be switched off again at the end of the countdown. This time can be set by you. The "Timer in Use" tick will ticked / Un Ticked automatically when when the appropriate command is received. The Text Box commands can be changed and saved if required.
    Example Text sent to your node to turn On the Listen Only  CALLSIGN COMMAND <60> Example =  "EI2IPG-L Listen On" or "EI2IPG-L Listen On 60". The 60 added to the last command will set the countdown time to 60 minutes. To turn the Auto connects back on "EI2IPG-L Listen Off". (Without the " ").You will get a text box confirmation of a successful command. The text commands are not case sensitive
    Mute Last Talking Station
    Conference Sysop Command. My must be logged in as admin/sysop to a *CONFERENCE*
    Example Text sent to your node to Mute that last talking station that is connected to a conference  CALLSIGN COMMAND Example =  "EI2IPG-L Mute" or "EI2IPG-L Mute Timed". (Without the " ") The mute command will send the text command to the connected conference and the station will remain muted until the offending node disconnects and re connects to remove the mute. the "EI2IPG-L Mute Timed" command will also send a message to the offending node that they have been time muted and will be un muted after the conference controller time you have set has been reached (See Above section). The text commands are not case sensitive. You will get a text box confirmation of a successful command.

    Un Mute All
    Conference Sysop Command. My must be logged in as admin/sysop to a *CONFERENCE*
    Example Text sent to your node to Un Mute All on the connected conference you have admin rights  CALLSIGN COMMAND Example =  "EI2IPG-L Un Mute All". (Without the " "). The text commands are not case sensitive. You will get a text box confirmation of a successful command.
    Who Is Transmitting & Time
    Example Text sent to your node to see who was the last station that transmitted   CALLSIGN COMMAND Example =  "EI2IPG-L TX?". (Without the " "). The text commands are not case sensitive. You will get a text box confirmation of a successful command by sending back the last call that transmitted. The Time & Date of your node can be sent to any station sending Example =  "EI2IPG-L Time?". (Without the " ") The time and date will be returned to the requesting node.
    Disconnect All from your Node
    This option enables your node to Disconnect All station connected to your node. CALLSIGN COMMAND Example =  "EI2IPG-L Disconnect All". (Without the " "). Also you can disable the Auto Re-Connect at the same time by using the command Example =  "EI2IPG-L Disconnect All Off". (Without the " ") The text commands are not case sensitive. You will get a text box confirmation of a successful command.

    Connect a Station to your Node
    This option enables your node to send an 8k 8bit wav file to the RF and connected IP stations using a command in the text box. As an example if you wanted to connect the Ireland Conference you would enter as follows CALLSIGN COMMAND Example =  "EI2IPG-L Connect Node *IRELAND* ". (Without the " "). The text commands are not case sensitive. You will get a text box confirmation of a successful command.

    Textbox Request to RF & IP wav Player Utility
    This option enables your node to send an 8k 8bit wav file to the RF and connected IP stations using a command in the text box. See next section below for usage and information



    Back To Top

    =============================================================


    Textbox Audio Requests



    This option enables your node to send an 8k @ 8bit wav file or 22050Hz @ 128 Kbs Mono MP3Audio file to the RF and connected IP stations using a command in the text box. Enter the Textbox Command in the text field that you want to use to play the selected wav file. Enter the Text Box Reply Message in the Text field. This is the message that will be sent to the connecting station telling them that the command that sent has been accepted. Enter the wav file and path that is to be played. I have included a text field that will send a message if the remote node sends a command while the system is in use just to let them know to try again.

    Text Box Command
    Enter the command that you want the remote node to use to activate your Audio file and Reply text. Keep the command as short as possible and include your callsign because if there were 3 stations using the same command as you then all the stations would try and send there audio files at the same time. Maybe use your callsign as part of the command then messages would easily be identified by the program. See above picture as an example that I have used.

    DTMF Command
    Enter the DTMF command that you want the remote node or RF user to use to activate your audio file.

    Text Box Reply Message
    Enter a message here that you want your node to send back a text message to the remote node letting them know that the command was successful. If you only want a text message to be sent when the correct command is received simply leave the audio file section blank

    WAV File To Play
    Enter the wav file and the path to be played when the command is sent. The File button will help you find your file. The small unmarked button is a test play button that I would suggest you use to test that the wav file plays for you.
    ONLY 8k 8bit wav or 22050 Hz @ 128 Kbs mono mp3 format files play in this option

    If Node Is Busy Ignore Received Text Commands
    This option when ticked will NOT send the Text Box Reply or or Selected Audio file if entered if the node is busy and in use.

    User can Add [#] To the end of the Text Command To Override If Node Is Busy
    The user can add the special character to the end of the Text Box Command to override and send the information if the system is busy option is in use.

    Other Text Buttons
    Buttons to other parts of the program are included in this section for easy access to other Text Bo option that can be used in conjunction with this section


    Back To Top

    =============================================================


    About


    About
    This screen is simply my contact details and a place to check for updates

    Backup and Save Your Config .ini Files
    This option enables you to make a backup if your configuration files

    Check For Updates

    When you click on the Check For Updates button and there are no updates you will see a message next to the button saying that there are no updates available. When there are updates available you will see the Updates Available button appear. Simply click on this button to start the update process. When this button is clicked the EchoProducer program will end while the updates are in progress. When the updates are complete you will be instructed to start the EchoProducer program.

    Auto check for update when program starts
    This option when ticked will check to see if there is an update to the program available. It is advised to keep this ticked.



    Click the Update EchoProducer button to start update.



    When update is complete you now need to start your EchoProducer program.
    Remember to visit the website to checkout what changes have been made.


    Back To Top

    ==============================================================

    Backup INI files


    This option is useful to transfer your files to another computer and enables you to backup your configuration files that are held in C:\WINDOWS directory. Simply make or select a directory that you want to save you .ini file to be saved in and click the Backup ini Files button.

    To put the backed up .ini files back in to place is a simple matter of manually copying the backed up files into the  C:\WINDOWS directory.

    The EchoProducer INI Files can be found C:\WINDOWS. The files backed up are :
    MP3_PlayerABC.ini
    echogreeting.ini
    beaconabc.ini
    beaconabc2.ini
    Colors.ini
    abcweather.ini
    textmessage.ini
    seriesplayer.ini
    echonewsmp3d.ini
    epcourtesy.ini
    echodtmfhelpMP3.ini
    newsabc.ini
    identabc.ini
    ban.ini
    dtmfctrl.ini
    echoabc.ini
    echoadmin.ini
    echoadmin.ini
    echonet2.ini
    confilter.ini
    profiles.ini
    messagebox.ini
    messageforsysop.ini
     language.ini
    history.ini
    Updater.ini
    ccwarnings.ini
    extboxbeacon.ini
    autoconnect.ini
    confadmin.ini
    WXWarnEurop.ini
    day-time-beacon.ini


    Back To Top

    ==============================================================


    FAQ's

    Will EchoProducer run under Vista
    The 1st version of EchoProducer has issues with Vista.

    What computer do I need and how fast must it be
    EchoProduce runs under the Windows 7 / XP platform. Due to the size that the program has grown I would suggest that the computer speed needed would be over1 gig speed and as much memory as you can. 500 meg and above. The rule of thumb her is the fastest computer with the most memory as possible. Slower computers give the Server Busy Message.

    Do you have any information / Circuit to build an Audio Limiter
    Here is a nice one that works http://www.repeater-builder.com/projects/limiter/limiter.gif  for more information check out the http://www.repeater-builder.com/rbtip/

    Is there a source for free voices
    You may find one of the FREE voices here you can use http://www.bytecool.com/voices.htm
    I have a runtime Error 429
    If you do not have EchoLink installed you will get a runtime error 429 message. Simply install EchoLink into its own default directory.

    I am using EP and it often gives the "Server Busy" error when I first turn the monitor on and look at the program. It does not seem to effect the program
    You may try to increase the paging file size look in ...
    Control Panel > System > Advanced > Performance > Settings > Advanced > Virtual Memory > Change..... set this to a higher value...
    this helps if you are using your computer for other things.. (Thanks William (no3y) for the info)   Mine is set to over 1536 Meg
    I downloaded the Echo Producer Program......All is well except that when it says ANYTHING.....the transmitter stays transmitting....
    I figured out what the problem was as to why it stayed keyed up all the time...Under the DTR/RTS Tab I had checked the "enable duplex" box. Once I unchecked this box, it works just fine........And it is working just fine on my old  400MHZ, 128M RAM, Win XP SP2 lap top. (Royce N6RDN)

    My Computer is a P2 446 is that fast enough as I seem to be having problems
    Unfortunately with the features that EchoProducer has, it requires just a little more grunt than a p2 466, I have had the same trouble over the years but what we are asking an old PC to do it is amazing that it works at all. A minimum would be a p3 1000mhz and 512 ram, I have EchoProducer running quite fine on that, I also have a p3 800, it will not run on that, the CPU goes to 100% when anything is happening and then nothing happens.

    How do I Turn Off the normal EchoLink voice
    To stop the EchoLink voices and have EchoProducer voice only on the EchoLink program go to
    TOOLS - SYSOP SETTINGS - IDENT and blank out the callsigns and all remaining tick boxes must be empty. Tick the Use external file box.
    TOOLS - SYSOP SETTINGS - OPTIONS Set Announce Connects to None. Set Announce Disconnects to None. Set Announcement Muting to Suppress all
    The only EchoLink voice that we are unable to disable is the "Connecting to Call" when DTMF is used
    How do I install the voice
    The program uses the XP speech engine and this must be working before the EchoProducer program is run.
    Setting up your voice is not hard. Once you have installed your voice using the instructions provided with your voice simply go to the control panel and select the speech icon as this is where you will select the voice that you have installed. this is done by going to Start – Settings - Control Panel – Speech - Voice selection - select your voice you installed. (If you can see your voice you haven’t installed it.)
    You can test the voice here and when you are happy with your selection click OK. Your voice should work with any of your programs that use the speech engine like EchoProducer.
    (W3WTW) I'm trying to install EchoProducer and when starting the install I keep getting a message saying system files are out of date and to reboot before restarting the install.
    I found the issue. MSVBVM60.DLL was locked by another process and could not be updated. Once I killed that process this DLL updated correctly and EchoProducer installed without a hitch.

    I have updated from the Lite / Plus version and get a box come up saying that it cant find a wav file.
    You need to change that path to the to the wav files in 3 places.
    1. IDENTS / SETTINGS - SETTINGS - Change Connect bell path to C:\Program Files\EchoProducer\RF.wav.
    2. CURTSY TONES Change the path to RF Audio ID to C:\Program Files\EchoProducer\RF.wav
    3. CURTSY TONES Change the path to Internet Audio ID to C:\Program Files\EchoProducer\IP.wav
    For some reason none of my CW Idents and Announcements are not working
    Check that the Disable Announcements tick box is not ticked.
    IDENTS / SETTINGS - SILENCE ANNOUNCE - Un tick  Disable Announcements
    Also
    I've tried "almost" every setting to have my station say the time on the hour and half-hour with a TTS that includes my callsign and location.
    You may need to set the seconds a little longer for you beacon transmit time especially if you are using the end of over audio option. IDENTS /SETTINGS - IDENTS set the seconds say 15 seconds (15 seconds after the time) (The one in Blue) as a starting point and increase or decrease the seconds to your needs. If you are using seconds below 10 seconds proceed the number with a 0 (Zero) as an example 05 or 07 or 09. if you do not do this it will not work. Also make sure that the computer clock is set to 24 hours. Its trial and error with this one to get it as you want. Check that the Silence announcements option is NOT ticked (A few have been caught out on this one) IDENTS – SILENCE ANNOUNCEMENTS untick “Disable announcements / CW Idents”

    Parrot Mode constantly misses the first couple words of a transmission
    In Echolink, uncheck the "squelch crash anti-trip" under " sysop settings/RX Ctrl" and it then it will start working flawlessly. (Thanks Dave. H)

    From time to time some of my voice time announcements do not work
    If you are using Microsoft Remote Desktop this can cause this problem. Microsoft Remote Desktop can be the cause of killing the sound!
      I became tired of having it ID every 10 min even when the link has not been active so I set it up so it would stop after 10 Min in the idents settings.This works great until I play News Line witch can  last a good 25 to 30 minutes. It will never ID during the news.
    You can tick and set the use "Allow Breaks In Transmission. For Radios With Built In Time Out or CW Idents". Set the milliseconds to 50. You may need to adjust this time to suet your needs. This will give a small break in transmission that will give a signal to the CW that it can go ahead and give out its CW ident.
    I'm having trouble getting the scheduler to auto-connect and news to play at specified day/time
    Make sure your Windows clock is on 24 hour time. To do this, go to the Windows control panel, make sure it is in "Classic View" and choose "Region and Language Options." Then, click Customize. Choose the tab labelled "Time." Under the Time Format pull-down menu, choose "HH:mm:ss." Click OK, Then OK again, and Windows should now be showing the time in 24 hour format.

    I'm having trouble getting the ARNL  news to download do you have the URL that I need to use.
    the URL that I use is ftp://ftp.arnewsline.org/quincy/News/news.mp3  Watch out as they change this URL from time to time
  • Do you have the any simple interface circuits that I can use for my node
    There are some very good commercial interfaces that you can buy that work very well.
    Click HERE for the simple circuits that I have built and use. I find them very good and work well
  •
    Do you have the phone number of the girl who is doing the Kate voice
    Guys GET A LIFE is a computer generated voice (Honest I have had emails for it)

    Where are the ini files so as I can back them up
    The EchoProducer INI Files can be found C:\WINDOWS
     autoconnect.ini
    audiobeacon.ini
    audiobeacon2.ini
    Colours.ini
    MP3_PlayerABC.ini
    echogreeting.ini
    beaconabc.ini
    beaconabc2.ini
    abcweather.ini
    textmessage.ini
    seriesplayer.ini
    echonewsmp3d.ini
    epcourtesy.ini
    echodtmfhelpMP3.ini
    newsabc.ini
    identabc.ini
    ban.ini
    dtmfctrl.ini
    echoabc.ini
    echoadmin.ini
    echonet2.ini
    confilter.ini
    profiles.ini
    messagebox.ini
    messageforsysop.ini
     language.ini
    history.ini
    Updater.ini
    ccwarnings.ini
    extboxbeacon.ini
    day-time-beacon.ini

    Back To Top

    ===========================================






    I hope you find the program useful

     Donations are always welcome to help with the upkeep and advancement of the Repeaters & Software
    If you find the program of use please add your support by donating

    or send it via PayPal to  " ei4jr@eircom.net "

    Peter EI4JR

    Back To Home Page

    Back To Top



    Page Updated on  11/06/2013



    Flag Counter
