Mixmax
Diet Feeder -
Specifications
|
|

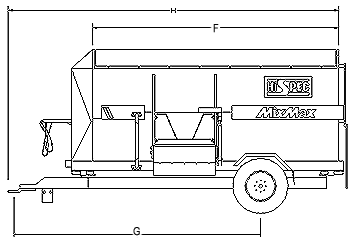

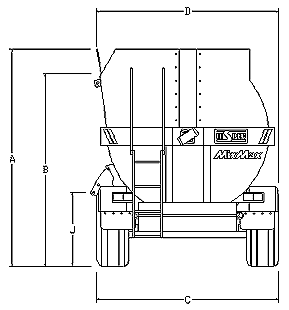

Below is a list of Mixmax Diet Feeder specifications...
|
Ref.
|
Details
|
Mixmax
10
|
Mixmax
14
|
Mixmax
16
|
Mixmax
18
|
|
A
|
Overall
Height |
2640mm(8'8")
|
2640mm(8'8")
|
2985mm(9'9½)
|
2985mm(9'9½)
|
|
B
|
Filling
Height |
2390mm(7'10")
|
2390mm(7'10")
|
2700mm(8'10½")
|
2700mm(8'10½")
|
|
C
|
Wheel
Track Width |
2180mm(7'2")
|
2180mm(7'2")
|
2350mm(7'8½")
|
2350mm(7'8½")
|
|
D
|
Overall
Width |
2280mm(7'6")
|
2280mm(7'6")
|
2400mm(7'10½")
|
2400mm(7'10½")
|
|
F
|
Tank
Length |
3000mm(9'9")
|
4000mm(13'1")
|
4050mm(13'3½")
|
4550mm(14'11")
|
|
G
|
Centre
of Hitch to Wheel |
3750mm(12'3½")
|
4400mm(14'5")
|
4700mm(15'5")
|
4700mm(15'5")
|
|
H
|
Overall
Length |
4770mm(15'7½")
|
5770mm(18'11")
|
6100mm(20'0")
|
6600mm(21'7½")
|
|
J
|
Discharge
Chute Pivot Height |
860mm(2'10")
|
860mm(2'10")
|
928mm(3'½")
|
928mm(3'½")
|
| |
Capacity |
10m³
|
14m³
|
16m³
|
18m³
|
|
|
H.P
Requirement |
60h.p
|
70h.p
|
85h.p
|
100h.p
|
