 Vacuum
Tanker - Overhead Unloading Boom |
|
Designed
primarily for use in the unloading of a Vacuum Tanker
into an overhead filling point of a separate tanker.
The overhead Unloading Boom is the ideal option for
use in cases where regulations permit that road conditions
must be kept clean at all times.

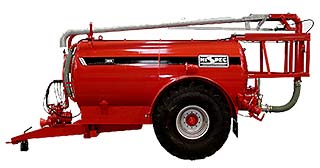

Side View |

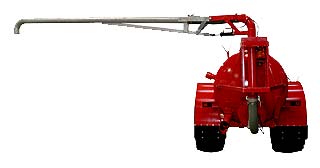

Rear View (with boom at 90 degrees to tanker) |
Advantages
It's advantage is such that one tanker can spread
slurries on the land while another tanker
equipped with the Unloading Boom can refill it from
a road alongside, thus eliminating the threat
of slurries and mud etc. being carried onto the road.
Features
The Unloading Boom can be rotated hydraulically through
270º from the tractor, thus making it possible
to unload on both the right and the left
hand sides of the tanker. With a length of over 4.8
metres and a system that makes it possible to vary
the height of the boom hydraulically from
the tractor, the majority of ditches, walls etc. can
be easily reached over. The Unloading Boom is available
on all on tankers ranging from 750
gallons (3410ltrs) to 3000 gallons (13638 ltrs). Hydraulically,
it only requires one double
acting valve and one single acting valve.
