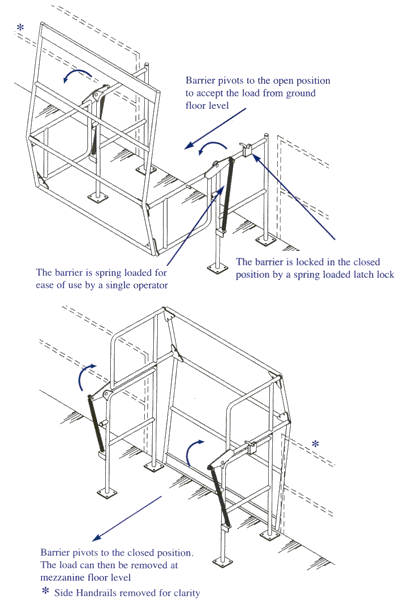

Typical Ajax - Standard Safety Barriers

Technical Data Standard Safety Barriers Operation - Spring Assisted manually operated Finishes - Powder coated yellow to BS 08E51 (Other colours available upon request). -Galvanised to BS 729 - Stainless steel Maximum standard loads - 1800 high x 1500 deep x 3000 wide Special options - Pivoted siderails which can be folded back to clear fire doors, security doors etc. - Hinged bottom section to reduce the arc of the barrier when headroom is limited. Services Offered - Supply only - complete with full installation instructions - Full installation/Commissioning - Staff instruction - Annual maintenance/Inspection Services Offered Special safety barriers can be designed to suit individual requirements.
