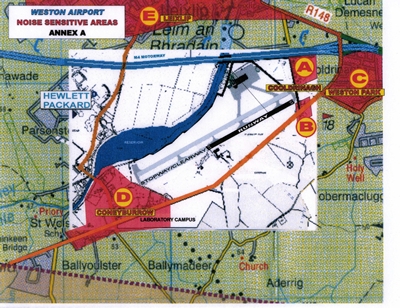

Noise

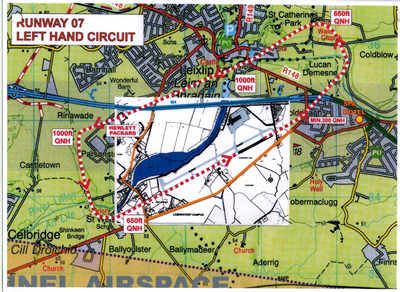

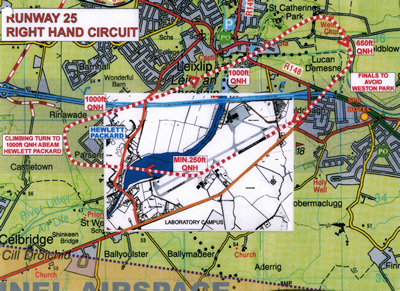

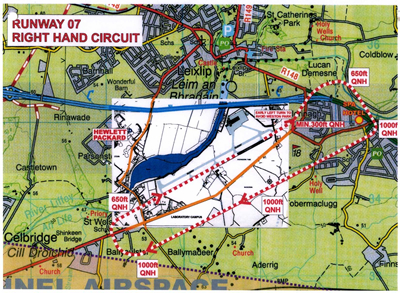

Circuit Procedures A left circuit off RWY 25 of a right circuit of RWY 07 may result in an inadvertent penetration of the EIR15. By arrangement between Weston and the Military these circuits will only be available between for use when clearance from Military ATS, Casement Aerodrome has been obtained by Weston AFIS. Military ATS will provide notification of such clearances to Weston when Casement activity permits and notified on the AFIS. When permission is granted by the Military ATS for use of the above RWY 25/07 circuits it is based on the premise that aircraft will remain North of the railway line at all times. At all other times at Weston, circuits off runway 25 shall be right-hand and circuits off runway 07 shall be left-hand. Arrival Route from Maynooth Route North of Maynooth towards Leixlip at 1450ft QNH. When abeam the industrial complex, make a right turn towards the airfield to arrive overhead at 1450ft QNH. Report overhead at 1450ft QNH and join the circuit giving way to circuit traffic. No suggested arrival route for traffic from the east is published however traffic arriving from the east who wish to position directly to the airfield below 1500ft QNH must ensure that they do not penetrate the R15 and R16 without advance clearance from the Military at Baldonnnel, or the Dublin CTA / CTR without advance clearance from ATC at Dublin. Aircraft are requested to avoid over flying the Technology Campus and Industrial Complex located close to the field.


	ARP Coordinates Direction and Distance from City Elevation / Reference Temp. Magnetic Variation / Annual Change Traffic Permitted (IFR / VFR) Administration Address	532108.76N 0062910.33W 8NM W of Dublin 150ft / 17°C 5° 42' (2003) 11' decreasing VFR Weston Ltd. Leixlip, Co. Kildare

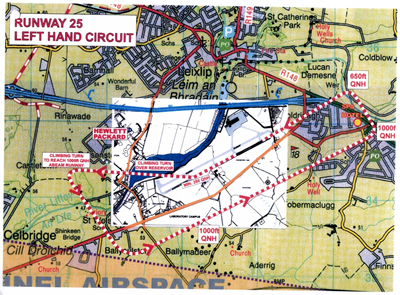

	When RWY 25 left circuit is in use the standard circuit will be Runway 25 left circuit. Runway 25 Left Circuit After take-off and established in a positive climb begin a gentle RIGHT turn to over fly the reservoir climbing to 800ft QFE On reaching 800ft QFE turn left onto the crosswind leg, and continue the turn onto the downwind leg making sure you are north of the railway line at all times. Turn left onto base when abeam the Spa Hotel remaining clear of Lucan village. Establish finals no lower than 500ft QFE Note: Departing traffic wishing to penetrate the R15, R16 or Dublin CTA / CTR are requested to follow the standard departure route to Maynooth, and establish RTF by Maynooth for appropriate clearance. RTF contact with Baldonnel should not be attempted while on the ground at Weston.

	ATS airspace designation and lateral limits Weston ATZ 532235N 0062952W, 532139N 0062649W, clockwise arc 1.5NM radius center 532109N 0062910W, 532020N 0062704W, 532034N 0063056W, 532038N 0063132W, clockwise rc 1.5NM radius Centre 532109N 0062910W

	Vertical Limits Airspace Classification ATS unit callsign Transition Altitude	1500ft G Weston Tower (Information) 5000ft

All Pilots wishing to use Weston should check the procedures published at the airport for current or changes to the above procedures.
