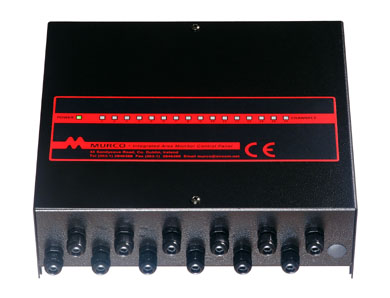

Integrated Area Monitor Controller
- (IAM-C)
The Murco IAM control panel enables you to effectively and competitively construct and monitor major integrated leak detection systems. It facilitates rapid identification of the location of a leak so that it can be rectified promptly.
It has the capacity for up to 16 IAM sensors or optionally the system can be multiplied by connecting up to sixteen IAM control panels if desired, thus allowing up to 256 sensors plus.
- Red Led display shows the channel in alarm and siren sounds so that it can be located quickly.
- Local siren with siren deactivate key to provide a local or remote alarm.
- Constant power monitoring (Green LED)
- Constant fault monitoring Green LED off, Red LED displays the fault, no siren operates.
- Remote reset, which will reset any sensor or IAM control panel connected to its 16 channels once the particular alarm condition has cleared
- Two relays (10A 230VAC which both switch on alarm and enable control of external equipment i.e. external air conditioning unit.
- 230V or 120 V AC power supply.
- Two wire (7/0.2mm, 500M) output signal to another IAM control panel allowing construction of large systems.
- Dimensions: 262 x 255 x 82mm Weight: 2.6KG
