PORTABLE UNDERBODY & WHEEL WASHING SYSTEMS

When operating a Quarry, Landfill, or Construction site, there is a need for a Wheel Wash system to be employed to keep the nearby Public Highways clean and to also meet current Government Legislation on The Environment.


Installing a Wheel Wash is the only viable solution, and for customers who are running a site for a relatively short time, there is a need for a 'Portable machine to lay flat on the ground, still giving the same cleaning ability, but also making it easier to relocate the machine after a site has finished. We at Euro-Wash have the solution, incorporating the same excellent performance connected with the Wickham name, but without any Civil Work Requirements other than a level base. Euro-Wash have introduced two new Portable Units, the Hurricane and the Typhoon Underbody and Wheel Wash Systems.

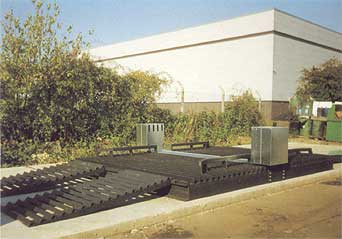

HURRICANE

Twelve high pressure jets of water set at varying angles are fitted in the Hurricane's bottom boom and four jets are set in each of the side brackets to ensure complete coverage. All jets oscillate automatically 40 times a minute through an angle of 90°, to give maximum cutting effect.

ELECTRIC SUPPLY 380/440V 3ph N + E 60 amp GENERATOR SIZE 60 KVA DIMENSIONS Width: 400cm Length: 1050cm

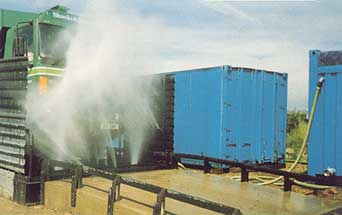

TYPHOON

This is the 'Typhoon' completely Mobile Underbody Wheel Washer. The 'Typhoon' is Fully Automatic and specially designed as a Portable Unit, comes complete with a water collection chamber, and Container Tanks for the settlement of solids, water is then pumped from the machine to the container. The machine will operate from it's own generator and will take fresh water from a bowser or a piped water supply. The 'Typhoon' has a performance midway between the successful 'Double Hurricane' and the 'Monsoon' Heavy Duty Unit.

ELECTRIC SUPPLY 380/440V 3ph N + E 80 amp GENERATOR SIZE 90 KVA DIMENSIONS Width: 320cm Length: 1100cm
